Description
Technical data for the Ø8 mm Long ground wood end mill
| Technical data | |
|---|---|
| Working diameter d1 | 8 mm |
| Shank diameter d2 | 8 mm |
| Flute length l2 | 30 mm |
| Overall length l1 | 100 mm |
| Number of cutting edges | 1 |
Cutting data for the Ø8 mm Long wood end mill
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| NSoftwood | 452 | 0.144 | 18000 | 2592 |
| NHardwood | 352 | 0.088 | 14000 | 1232 |
| NMDF / plywood | 402 | 0.112 | 16000 | 1792 |

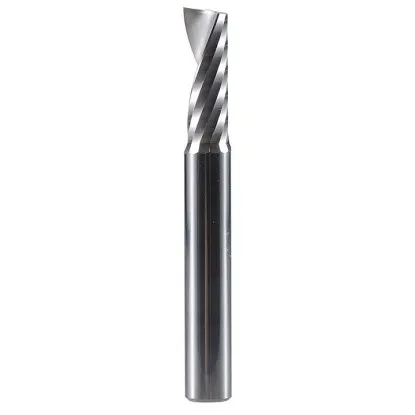

Long end mill for wood Ø8 mm – single-flute solid carbide (VHM) tool for deep cuts
Ø8 mm Long wood end mill is a solid carbide (VHM) tool with an overall length of 100 mm and an extended flute length of 30 mm. It combines the productivity of a 8 mm diameter with deep milling capabilities beyond those of the standard version. The ground, single cutting edge from Horn with upcut geometry ensures clean cutting and efficient upward chip evacuation even from deep grooves and pockets.
Key benefits of the Ø8 mm Long single-flute end mill
- Flute length 30 mm allows deep grooves and pockets to be milled with a single tool
- Overall length of 100 mm provides extended reach and access to thicker, deeply recessed parts
- Upcut geometry lifts chips upward, which is essential for deep milling
- Solid carbide (VHM) core maintains the rigidity of the extended body and a long cutting edge life
- Universal application – solid wood, MDF, plywood, plastics and acrylic
The long Ø8 mm carbide end mill for wood is suitable for machining thick countertops, milling deep pockets, grooves, and furniture fronts, and any application requiring greater reach. The extended flute length enables deep cuts, so reach the required depth in several passes and maintain a constant feed rate.
If maximum rigidity in shallow machining is your main priority, choose the standard 8 mm end mill for wood. The long version is designed for deep milling and extended reach.
Frequently asked questions
The 30 mm flute length allows significantly deeper cuts than the standard version (22 mm), while the 100 mm overall length provides additional reach. In practice, cutting depth can extend to the full cutting edge length, preferably reached in several passes to ensure efficient chip evacuation.
The cutting parameters are the same as for the 8 mm end mill: 14000–18000 rpm and a feed rate of 1232–2592 mm/min, depending on wood hardness. For deep milling and greater overhang, we recommend a smaller depth per pass and steady feeding to limit vibration.
Choose the long version for deep pockets, thick countertops, grooves, and fronts, and wherever the holder must remain well away from the material. For shallow grooves and applications requiring maximum rigidity, the standard 8 mm end mill is the better choice.
