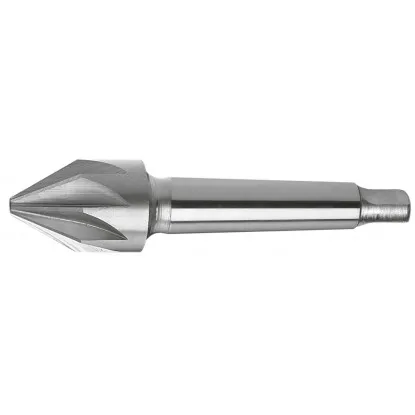

Tapered countersink 25/60 DIN 334 B HSS

Producer: Artykuły Techniczne

reference: 4973

€40.46 tax inc.

Net price: €32.89

Instant Shipping

In stock > 10 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data of conical countersink fi 25 mm 60 degrees

Technical data
Blade angle	60 degrees
Maximum bore diameter D	fi 25 mm
Minimum bore diameter D1	3,5 mm
Morse taper No	2
Total length L	118 mm
Length of Working Part l	26 mm
Number of Blades Z	3
Material	HSS high-speed steel
Product	Polish

Cutting parameters for countersink fi 25 mm 60 degrees

ISO Symbol	Material	Vc [m/min]	Feed fz [mm/ostrze]	n [obr/min]	Total feed rate f [mm/min]
P	Steel	18	0,06	229	41
M	Stainless steel	10	0,03	127	11
K	Cast iron	8	0,04	102	12
N	Aluminum	50	0,12	637	229

Tapered countersink fi 25 mm 60 degrees DIN 334 B HSS is a professional cutting tool, designed for countersinking holes at an angle of 60 degrees and for smoothing the faces around the holes. Thanks to its manufacture from high-alloy HSS and the use of Morse taper shank, the tool guarantees high precision and durability even in intensive use.

The fi 25 mm 60-degree tapered countersink has three symmetrical working blades that provide exceptional stability during machining, eliminating vibration and enabling accurate, even cutting. The tool is made in accordance with DIN 334 B, which confirms its compliance with industrial requirements and guarantees the repeatability of technical parameters.

Suitable for machining steel, non-ferrous metals and plastics, the fi 25 mm 60-degree conical countersink for stainless steel will work well on both conventional drills and modern CNC centers. It is a reliable metal taper count ersink for users looking for maximum productivity and precision.

Morse taper shank - provides a secure fit in the spindle chuck, eliminating backlash.
Three working blades - ensures stable and quiet operation without vibration.
HSS high-speed steel - allows high-temperature and high-speed operation.
Precision working surface - allows for perfectly smooth and even countersinking.
Compliance with DIN 334 B - confirms the high quality and universal applicability of the tool.
