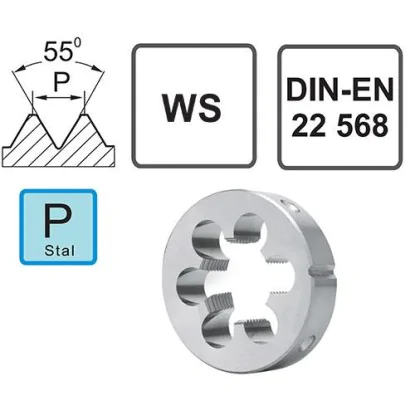

Die BSW 3/8-16 WS DIN-EN 22568

FWP FWP
691444
Thread size (inch): 3/816 sizes of this die
€3.88 tax inc.

Net price: €3.16

Instant Shipping
W magazynie: 10-100 szt.
W magazynie: 10-100 szt.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data die BSW 3/8-16

- notched thread d1 - 3/8-16,

- thread pitch - 16 turns per inch,

- external diameter d2 - 30 mm,

- thickness h1 - 11 mm,

- number of chip holes - 4,

- required diameter of the shaft - 9.40 mm.

Die Whitworth BSW 3/8-16

Die 3/8-16 BSW inch Whitworth for cutting external threads. It is die uniform which means that it makes a thread in one pass, after less than 2 turns and exactly 1.75 P a full thread is already made. The principle of work die is to screw it (like a nut on a bolt) during which the blades die cut the thread. The tool is made of high-grade SW7M high-speed steel from the HSS family. It is possible to use die both in manual and machine processing. An important point when making threads by hand is the use of toolholders for dies, thanks to which the proper execution of the thread is ensured and damage can be avoided die. Die have chip holes that are designed to drain the cut material, depending on the size die there can be usually from 3-6 holes. In the working part die there are cutting parts (exist on both working parts) and a guiding part located in the center of the working part.

Product accessories

Die stock 30X11

Reference: 4025 In stock > 10 items

€5.26

€6.47 brutto
