Description
Technical data for the NPT 1/16-27 die
| Technical data | ||
|---|---|---|
| Nominal diameter d1 inches/mm | NPT 1/16-27 inch | 7.9 mm |
| Thread pitch P inches/mm | 27 threads per inch | 0.94 mm |
| Outside diameter d2 | 25 mm | |
| Thickness h1 | 9 mm | |
| Number of chip clearance holes | 4 | |
| Required shaft diameter | 8.17 mm | |
| Thread angle G | 60° | |
| Thread standard | ANSI/ASME B1.20.1 DIN 24230 | |

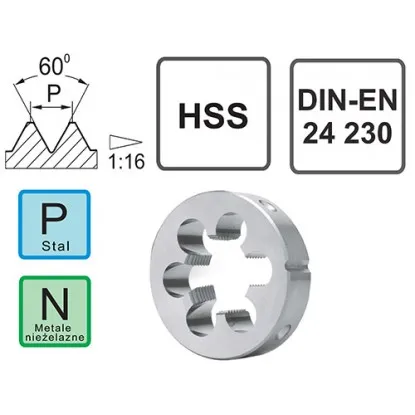

Die NPT 1/16-27 HSS – taper threading die for precision threading of small-diameter pipes
The NPT 1/16 die is a precision tool for cutting external taper pipe threads with a diameter of 1/16 inch and a pitch of 27 threads per inch. Made from high-speed steel (HSS) in accordance with DIN 24230 and ANSI/ASME B1.20.1, it is designed for threading pipes in systems requiring miniature connections.
Key advantages of the NPT 1/16 pipe threading die
- Leak-tight connections in instrumentation and control equipment – a 1:16 taper and a 60° thread angle ensure leak-tight connections for pressure gauges and pressure sensors
- Precision in industrial instrumentation installations – ideal for installing transducers, needle valves, and automation components
- Reliability in centralized lubrication systems – proven in oil lines and single-point lubricator connections
- Strength of HSS steel – enables machining of carbon steels, copper, and brass with tensile strengths up to 800 MPa
- Compliance with DIN 24230 and ANSI/ASME B1.20.1 – ensures compatibility with American instrumentation connection standards
The NPT 1/16 taper threading die is used in laboratories, manufacturing plants, and the installation of instrumentation and control equipment. Inch-size taper threads of this size are used in pressure gauge and pressure sensor connections and precision pneumatic systems.
This hydraulic threading tool is chosen by automation technicians and maintenance specialists working with precision industrial equipment. Order the NPT 1/16 die for professional threading of small-diameter connections.
Frequently asked questions
This size is used in pressure gauges, pressure sensors, and measurement transducers. Small connections also work well in lubrication systems.
Smaller diameters require a finer pitch to maintain a tight seal. A higher thread count provides better sealing along the taper.
HSS steel allows threading of brass, copper, and carbon steels. The tool handles materials with tensile strengths up to 800 MPa.
