Die tapered NPT 1-11.1/2 Fanar
search

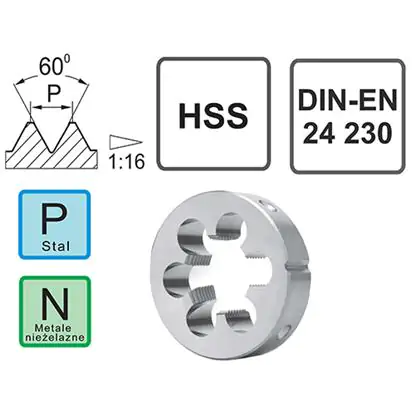

  • Die tapered NPT 1-11.1/2 Fanar
  • Die tapered NPT 1-11.1/2 Fanar - nr. 1
Fanar Narzędzia

Die NPT 1-11.1/2 HSS 800 DIN 24230

Fanar Narzędzia Fanar Narzędzia
0000010714
€147.60 tax inc.

Net price: €120.00

Brak w magazynie
Brak w magazynie

Call and order: (44) 755-04-05

Description

Technical data for the NPT 1-11.1/2 die

Technical data
Nominal diameter d1 inches/mm NPT 1-11.1/2 inch  33.24 mm
Thread pitch P inches/mm 11.1/2 threads per inch 2.20 mm
Outside diameter d2 65 mm
Thickness h1 25 mm
Number of chip clearance holes 7
Required shaft diameter 32.59 mm
Thread angle G 60°
Thread standard ANSI/ASME B1.20.1 DIN 24230
Inch threading die drawing

Die NPT 1-11.1/2 HSS 800 – taper threading die for demanding pipe threading applications

The NPT 1 die is a professional tool for cutting external taper pipe threads with a diameter of 1 inch and a pitch of 11.5 threads per inch. Made from high-strength HSS 800 high-speed steel in accordance with DIN 24230, it is designed for intensive pipe threading in industrial pressure systems.

Key advantages of the NPT 1 inch pipe threading die

  • Enhanced durability thanks to HSS 800 steel – extended cutting edge life under intensive use and when machining materials with tensile strengths up to 800 MPa
  • Self-sealing connections without gaskets – a 1:16 taper and a 60° thread angle ensure leak-tightness in systems up to 700 bar
  • Versatile use in hydraulic power systems – ideal for oil systems, control valves, and industrial directional control valves
  • Reliability in pneumatic and gas systems – proven in compressed air, nitrogen, and industrial media networks
  • Compliance with DIN 24230 and ANSI/ASME B1.20.1 – ensures interchangeability with American piping systems

The NPT 1 inch taper threading die is used in hydraulic service shops, manufacturing plants, and the installation of medium-diameter industrial piping systems. Inch-size taper threads of this size are most commonly used in valve, pump, and cylinder connections.

This hydraulic threading tool is chosen by professional installers and maintenance teams who require reliability in everyday work. Order the NPT 1 inch HSS 800 die for threading pipes under the most demanding conditions.

Frequently asked questions

HSS 800 is a high-speed steel with enhanced strength and wear resistance. It provides longer cutting edge life under intensive use.

The tool is used in hydraulic power, pneumatic, and gas systems. The 1 inch size is standard for valve and pump connections.

The tapered NPT thread design provides sealing through thread interference. PTFE tape or sealing compound is recommended for higher pressures.
