Die tapered NPT 1.1/4-11.1/2 HSS Fanar
search

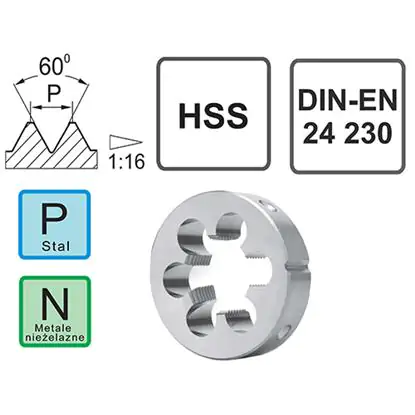

  • Die tapered NPT 1.1/4-11.1/2 HSS Fanar
  • Die tapered NPT 1.1/4-11.1/2 HSS Fanar - nr. 1
Fanar Narzędzia

Die NPT 1.1/4-11.1/2 HSS DIN 24230 Fanar

Fanar Narzędzia Fanar Narzędzia
009202
Thread size: NPT 1 1/49 sizes of this die
€78.98 tax inc.

Net price: €64.21

Brak w magazynie
Brak w magazynie

Call and order: (44) 755-04-05

Description

Technical data for the NPT 1.1/4-11.1/2 die

Technical data
Nominal diameter d1 inches/mm NPT 1 1/4- 11.1/2 inch  33.4mm
Thread pitch P inches/mm 11.1/2 threads per inch 2.20 mm
Outside diameter d2 75 mm
Thickness h1 25 mm
Number of chip clearance holes 8
Required shaft diameter 42.74mm
Thread angle G 60°
Thread standard ANSI/ASME B1.20.1 DIN 24230
Inch threading die drawing

NPT 1.1/4-11.1/2 HSS die – taper pipe die for threading medium-size pipes

The NPT 1.1/4 die is a professional tool for cutting external taper pipe threads with a diameter of 1 and 1/4 inch and a pitch of 11.5 threads per inch. Made of high-speed steel (HSS) in accordance with DIN 24230 and ANSI/ASME B1.20.1, it is designed for threading pipes in industrial systems requiring medium flow capacity.

Key advantages of the NPT 1.1/4 pipe threading die

  • Leak-tight connections in medium-size piping systems – a 1:16 taper and a 60° thread angle ensure leak-tightness in pressure systems up to 700 bar
  • Optimal diameter for distribution blocks and manifolds – ideal for hydraulic junctions, manifolds, and connections in distribution systems
  • Applications in industry and power generation – proven in oil systems, refrigeration systems, and compressed air networks
  • Strength of HSS steel – enables machining of carbon steels, copper, and brass with tensile strengths up to 800 MPa
  • Compliance with DIN 24230 and ANSI/ASME B1.20.1 – ensures interchangeability with American piping systems

The NPT 1.1/4 taper pipe die is used in industrial hydraulic service shops, manufacturing plants, and process system installation. This inch taper thread size combines good flow capacity with compact connection dimensions.

This hydraulic threading tool is chosen by maintenance technicians and industrial installers carrying out projects that require reliable pipe connections. Order the NPT 1.1/4 die for precision threading of medium-size pipes.

Frequently asked questions

This size is used in hydraulic distribution blocks, manifolds, and distribution junctions. It combines high flow capacity with a compact design.

Both sizes have the same pitch of 11.5 threads per inch. The ANSI standard specifies this value for diameters from 1 to 2 inches.

The high-speed steel (HSS) tool is suitable for carbon steels, copper, and brass. The maximum tensile strength of the workpiece material is 800 MPa.
