Description

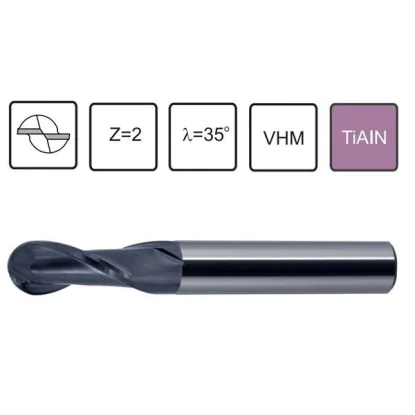

Technical data of carbide milling cutter fi 2 spherical
- working diameter d1 - fi 2 mm,
- shank diameter d2 - 4 mm,
- length of working part l2 - 4 mm,
- total length l1 - 50 mm,
- number of blades - Z - 2.
Cutting parameters of spherical carbide cutter fi 2 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷70 | 0,005÷0,007 |
| M | Stainless steels | 50 | 0,003 |
| K | Cast iron | 87÷100 | 0,009 |
| N | Aluminum | 150 | 0,008 |
| H | Hardened materials | 40 | 0,003 |
May be useful
Cutting parameters calculator
VHM phillips fi 2 spherical milling cutter
Fi 2 spherical VHMcutter D-2 R-1.0 with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide end mill 2 ball VHM, full carbide ball D-2, R-1, Z-2, VHM 45 HRC designed for single and multi-batch machining. It is end mill, with smooth cylindrical shank DIN6535 HA. It is recommended for machining , profiling and copying and also for making channels and grooves. Pitchfork milling cutters are characterized by better technical parameters, greater resistance to harsh cutting conditions, as well as better chemical resistance and abrasion resistance. These unique features of milling cutters allow not only to achieve higher machining efficiency combined with better quality, but also to increase the comfort of work. The tools we offer, carbide milling cutters fi 2 spherical are recommended for machining alloy steels, stainless steel, acid-resistant steel, heat-resistant steel, various grades of cast iron and other surface-hardened materials.
