Description

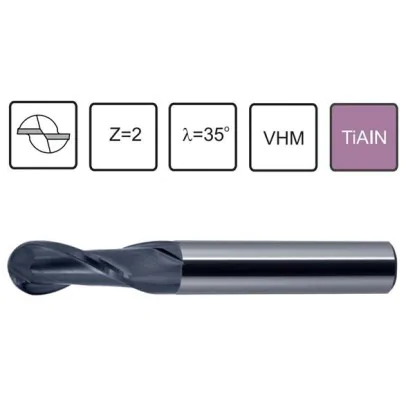

Technical data of carbide milling cutter fi 6 spherical
- working diameter d1 - fi 6 mm,
- shank diameter d2 - 6 mm,
- length of the working part l2 - 12 mm,
- total length l1 - 50 mm,
- number of blades - Z - 2.
Cutting parameters of spherical carbide cutter fi 6 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷70 | 0,028÷0,040 |
| M | Stainless steels | 50 | 0,020 |
| K | Cast iron | 87÷100 | 0,036 |
| N | Aluminum | 150 | 0,024 |
| H | Hardened materials | 40 | 0,015 |
May be useful
Cutting parameters calculator
VHM phillips fi 6 spherical milling cutter
Fi6 spherical VHM cutter D-6 R-3 with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide end mill 6 VHM spherical VHM burr, spherical D-6 R-3 Z-2 This is a high-quality carbide cutter with much higher technical parameters than a cutter made of high-speed steel. It is a cutter characterized by greater hardness, durability and resistance to very heavy cutting conditions. It is suitable for high-performance machining at increased speeds, during which high temperatures are generated. In addition, the cutters we offer have a low coefficient of friction, high chemical resistance and increased resistance to possible mechanical damage. Carbide milling cutters fi 6 spherical are suitable for drilling, making channels and grooves, as well as for profiling and copying. The milling cutters are recommended for various types of machine tools, including both conventional and modern machines with low radial runout, not exceeding 0.01 mm.
