Description
Technical data of carbide milling cutter fi 1 spherical
- working diameter d1 - fi 1 mm,
- shank diameter d2 - 4 mm,
- length of working part l2 - 3 mm,
- total length l1 - 50 mm,
- number of blades - Z - 2.
Cutting parameters of spherical carbide cutter fi 1 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷70 | 0,001÷0,002 |
| M | Stainless steels | 50 | 0,001 |
| K | Cast iron | 87÷100 | 0,003 |
| N | Aluminum | 150 | 0,005 |
| H | Hardened materials | 40 | 0,001 |

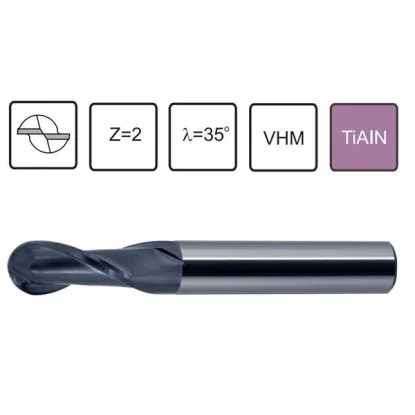

VHM phillips fi 1 spherical cutter
VHMmilling cutter fi 1 spherical D-1 R-0.5, with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA.
VHMcarbide 1 ball milling cutter, solid carbide spherical D-1 R-0.5, with TiAIN coating, with smooth cylindrical shank DIN6535 HA. It is end mill made of fine-grained tungsten carbide, characterized by increased resistance to very difficult cutting conditions. The cutter is resistant to any mechanical damage, which significantly extends its service life and increases the comfort of machining. The burrs we offer are suitable for machining alloy steels, stainless steel, acid-resistant steel, heat-resistant steel, cast steel, cast iron and other surface-hardened materials. Carbide fi 1 ball milling cut ters are recommended for professional high-performance machining with low radial runout machine tools and conventional machine tools. They are dedicated to both individual customers and large industrial plants.
