Description
Technical data of carbide milling cutter fi 5 spherical
- working diameter d1 - fi 5 mm,
- shank diameter d2 - 6 mm,
- length of the working part l2 - 12 mm,
- total length l1 - 50 mm,
- number of blades - Z - 2.
Cutting parameters of spherical carbide cutter fi 5 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷70 | 0,024÷0,034 |
| M | Stainless steels | 50 | 0,016 |
| K | Cast iron | 87÷100 | 0,036 |
| N | Aluminum | 150 | 0,015 |
| H | Hardened materials | 40 | 0,013 |
May be useful
Cutting parameters calculator
VHM fork milling cutter fi 5 spherical VHM

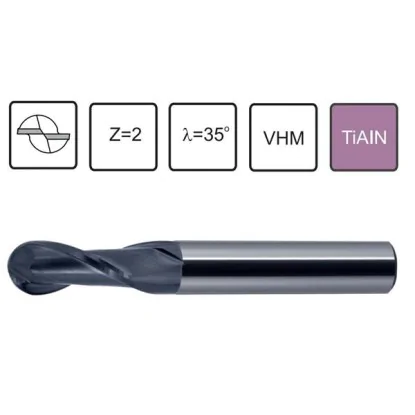

Fi 5 spherical VHM cutter D-5 R-2.5 with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA.
High-quality carbide end mill 5 spherical ball milling cutter D-5 R-2.5 Z-2 made of fine-grain carbide, VHM 45 HRC. We offer you professional burrs characterized by improved cutting parameters. Their advantage is, first of all, increased resistance to very heavy cutting conditions and also increased resistance to abrasion under high temperature. Carbide milling cutters fi 5 spherical are also resistant to abrasive wear characterized by greater hardness and durability. The technical parameters of carbide cutters are much higher than those of high-speed steel cutters. They are recommended for machining alloy steel, cast steel, cast iron, stainless steel, acid-resistant steel, heat-resistant steel and other hard surface-hardened materials. The burrs in our range can be used for making channels and grooves, for profiling, for copying and also for performing line machining.
