Description

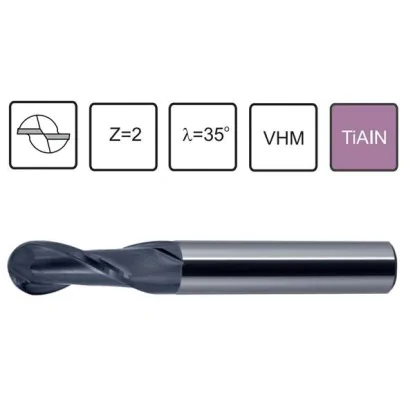

Technical data of carbide milling cutter fi 1,5 spherical
- working diameter d1 - fi 1,5 mm,
- shank diameter d2 - 4 mm,
- length of the working part l2 - 4 mm,
- total length l1 - 50 mm,
- number of blades - Z - 2
Cutting parameters of spherical carbide cutter fi 1,5 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷70 | 0,004÷0,005 |
| M | Stainless steels | 50 | 0,001 |
| K | Cast iron | 87÷100 | 0,005 |
| N | Aluminum | 150 | 0,006 |
| H | Hardened materials | 40 | 0,003 |
Pitchfork cutter fi 1.5 spherical VHM
Forkedcutter fi 1.5 spherical D-1.5 R-0.75, with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide end mill 1.5 spherical VHM, D-1.5 R-0.75 solid carbide full-head, with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA. It is a modern forked cutter designed for professional channel and keyway cutting, as well as for profiling, copying and line machining. It is made of fine-grained carbide, whose high cutting properties and exceptionally high hardness increase the quality and comfort of cutting. The carbide milling cut ters we offer fi 1.5 spherical b urrs are characterized by greater hardness and durability, as well as increased abrasion resistance and chemical resistance. The cutters are also characterized by better adhesion to the substrate and resistance to high temperatures.
