Description

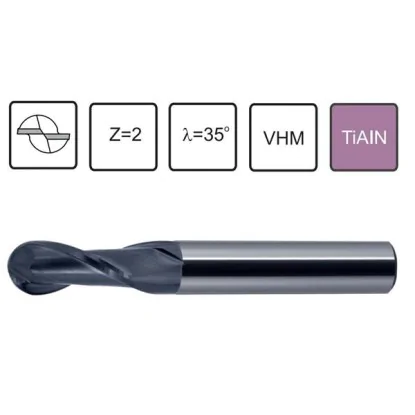

Technical data of carbide milling cutter fi 16 spherical
- working diameter d1 - fi 16 mm,
- shank diameter d2 - 16 mm,
- length of the working part l2 - 35 mm,
- total length l1 - 100 mm,
- number of blades - Z - 2.
Cutting parameters of spherical carbide cutter fi 16 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷70 | 0,078÷0,112 |
| M | Stainless steels | 50 | 0,060 |
| K | Cast iron | 87÷100 | 0,055÷0,070 |
| N | Aluminum | 150 | 0,053 |
| H | Hardened materials | 40 | 0,042 |
May be useful
Cutting parameters calculator
VHM fork milling cutter fi 16 spherical VHM
TiAIN-coated, fine-grain universal carbidefi 16 spherical VHM milling cutter D-16 R-8 with smooth cylindrical shank DIN6535 HA.
Carbide end mill 16 VHM spherical, widia spherical D-16 R-8 Z-2. It is end mill VHM 45 HRC, solid carbide, with smooth cylindrical shank DIN6535 HA. It is suitable for professional high-performance machining at increased speeds. The advantages of solid carbide cutters are increased resistance to heavy cutting conditions, increased abrasion resistance under high temperature, chemical resistance, good adhesion to the substrate and increased hardness. Carbide milling cutters fi 16 spherical offered in our store are much more resistant to mechanical damage than milling cutters made of high-speed steel. They are suitable for professional profiling, copying, making channels and grooves, as well as for drilling machining. The cutters are recommended for conventional machine tools and modern machines with higher rigidity (less radial runout).
