Description
Technical data of carbide cutter Fi 10 spherical
- working diameter d1 - 10 mm,
- shank diameter d2 - 10 mm,
- length of the working part l2 - 20 mm,
- total length l1 - 75 mm,
- number of blades - Z - 2.
Cutting parameters of spherical carbide cutter fi 10 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷70 | 0,049÷0,070 |
| M | Stainless steels | 50 | 0,029 |
| K | Cast iron | 87÷100 | 0,044÷0,046 |
| N | Aluminum | 150 | 0,035 |
| H | Hardened materials | 40 | 0,024 |

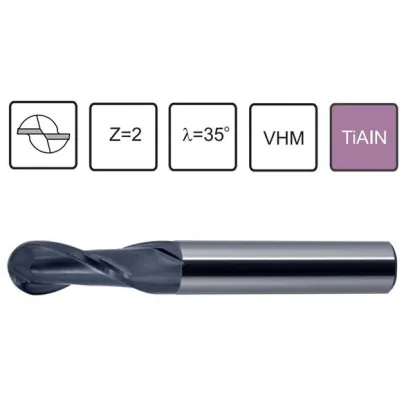

VHM full-hole cutter fi 10 ball end mill
VHMfi 10 spherical solid carbide ball mill D-10 R-5 with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide end mill 10 VHM spherical ball carbide D-10, R-5 with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA. It is designed for professional machining of hard and difficult-to-machine materials such as alloy steels, stainless steel, acid-resistant steel, heat-resistant steel, cast steel, cast iron and surface-hardened materials. The carbide fi 10 ball and fork milling cutters we offer are designed for profiling, copying, notching channels and grooves, as well as for drilling. The sintered carbide used in production is the hardest cutting material. It is characterized by better resistance to high temperatures and also to other severe cutting conditions. Pitchfork cutters are characterized by better abrasion resistance and also greater chemical resistance. It is suitable for professional, high-performance machining.
