Description

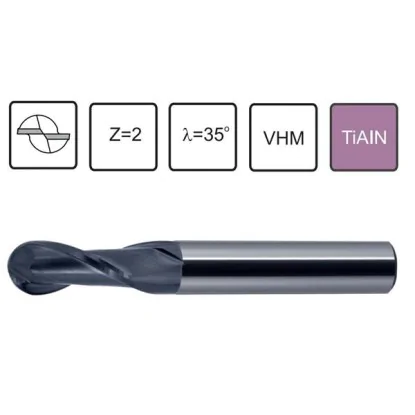

Technical data of carbide milling cutter fi 4 spherical
- working diameter d1 - fi 4 mm,
- shank diameter d2 - 6 mm,
- length of working part l2 - 10 mm,
- total length l1 - 50 mm,
- number of blades - Z - 2.
Cutting parameters of spherical carbide cutter fi 4 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷70 | 0,015÷0,022 |
| M | Stainless steels | 50 | 0,010 |
| K | Cast iron | 87÷100 | 0,029 |
| N | Aluminum | 150 | 0,015 |
| H | Hardened materials | 40 | 0,010 |
May be useful
Cutting parameters calculator
VHM phillips fi 4 spherical milling cutter
Fi 4 spherical VHM cutter D-4 R-2 with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide end mill 4 ball VHM,solid carbide, ball D-4 R-2 with TiAIN coating, made of fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA. It is a professional end mill, characterized by increased cutting parameters. It is more resistant to any mechanical damage, which significantly extends the end of use. In addition, it is resistant to abrasion under high temperature, has a low friction coefficient and good adhesion to the substrate. The carbide fi 4 ball milling cut ters we offer are designed for professional line machining, for cutting channels and grooves also for profiling and copying. They can be used for machining alloyed steel, stainless steel, acid-resistant steel, heat-resistant steel, cast steel, cast iron, heat-resistant steel and surface-hardened materials. They are recommended for various types of machine tools (conventional and low radial runout).
