Turning tool S20 SSSCR 09 Smoxh - 45 degrees
search
  • Turning tool S20 SSSCR 09 Smoxh - 45 degrees
  • Turning tool S20 SSSCR 09 Smoxh - 45 degrees - nr. 1
  • Turning tool S20 SSSCR 09 Smoxh - 45 degrees - nr. 2

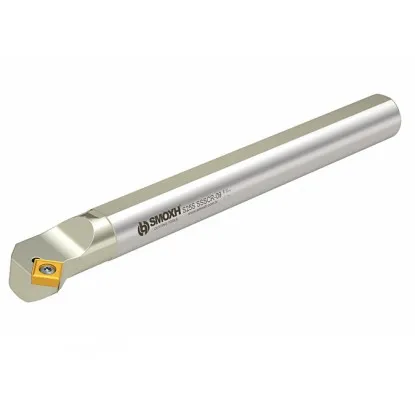

Turning tool S20R SSSCR 09 Smoxh

Smoxh Smoxh
710371
€42.08 tax inc.

Net price: €34.21

Out of stock
Out of stock

Call and order: (44) 755-04-05

Description

Technical specifications of the S20 SSSCR 09 45 degree folding knife

Technical data
DCON shank width 20 mm
Width H 18 mm
Overall length L 200 mm
Working height f 15 mm
Minimum opening Dmin 25 mm
Carbide insert matching Carbide insert SCMT 09T308
Rysunek noża tokarskiego składanego SSSCR

Turning tool s20 SSSCR 09 SCMT 09T3rr boring bar

Turning tool S20R SSSCR 09 Smoxh is a professional turning tool boring bar for internal turning, designed for CCMT 09T3rr inserts (rr - corner radius). The 45-degree angle allows 45-degree chamfers, undercuts, profiling and safe access to the bottom of the hole. Right-hand execution (R) means feed from right to left with standard spindle rotation direction.

The toolholder works with CCMT 09T3 inserts with C-shape (corner angle of 80 degrees) and C-angle of 7 degrees. Mounting with a center screw guarantees a secure fixation and fast insert change, and the fi 20 mm shank provides higher rigidity compared to smaller boring bars. An important parameter is the length of the overhang - the longer the overhang of the shank in relation to its diameter, the greater the risk of vibration. As a rule of thumb, the extension length should not exceed four times the diameter of the shank, which is written by the formula:

maximum extension length = 4 × diameter of the shaft
For a fi 20 mm shaft, this means a maximum safe extension of 80 mm.

Turning tool S20R SSSCR 09 Smoxh allows the use of CCMT 09T carbide inserts for steel, stainless steel, cast iron and aluminum, as well as CBN-tipped inserts for hard materials.

User benefits:

  • 45-degree bevel angle - allows you to make chamfers, undercuts and precise shapes inside holes.
  • Shank fi 20 mm - increased stability of tool guidance while maintaining the recommended overhang length.
  • Center screw mounting - provides repeatable edge positioning and shorter insert change time.
  • CCMT 09T3 standard - wide range of rr radii allows you to match roughness and depth of cut to the job.

Turning tool The S20R SSSCR 09 Smoxh will work well in both CNC and conventional lathes as a robust solution for precision internal operations in unit and batch production.

Read more

Product accessories

Torx T15 wrench

Reference: 0000006377 In stock > 10 items

€1.05

€1.29 brutto
