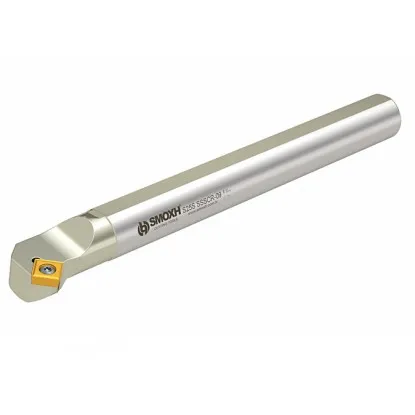

Turning tool S25 SSSCR 09 Smoxh - 45 degrees
search
  • Turning tool S25 SSSCR 09 Smoxh - 45 degrees
  • Turning tool S25 SSSCR 09 Smoxh - 45 degrees - nr. 1
  • Turning tool S25 SSSCR 09 Smoxh - 45 degrees - nr. 2

Turning tool S25S SSSCR 09 Smoxh

Smoxh Smoxh
14983
€45.32 tax inc.

Net price: €36.84

Out of stock
Out of stock

Call and order: (44) 755-04-05

Description

Technical specifications of the S25 SSSCR 09 45 degree folding knife

Technical data
DCON shank width 25 mm
Width H 23 mm
Overall length L 250 mm
Working height f 19,5 mm
Minimum bore Dmin 32 mm
Carbide insert matching Carbide insert SCMT 09T308
Rysunek noża tokarskiego składanego SSSCR

Turning tool s25 SSSCR 09 SCMT 09T3rr boring bar

Turning tool S25S SSSCR 09 Smoxh is a professional turning tool boring bar for internal turning, designed for CCMT 09T3rr inserts (rr - corner radius). The 45-degree bevel angle allows for 45-degree chamfers, undercuts, profiling and precise access to the bottom of the hole. Right execution (R) means feed from right to left with standard spindle rotation direction.

The toolholder is compatible with CCMT 09T3 inserts with C-shape (corner angle of 80 degrees) and C-angle of 7 degrees. Mounting with a central screw ensures stable fixation and quick insert change, and the fi 25 mm shank is characterized by high rigidity, allowing to work with higher parameters than in smaller boring bars. An important factor is the length of the shank extension - the greater the extension in relation to the diameter, the higher the risk of vibration. As a rule of thumb, the extension length should not exceed four times the diameter of the shank, which is written by the formula:

maximum extension length = 4 × shaft diameter
For a fi 25 mm shaft, this means a maximum safe extension of 100 mm.

Turning tool The S25S SSSCR 09 Smoxh allows you to clamp CCMT 09T carbide inserts for steel, stainless steel, cast iron and aluminum, as well as CBN-tipped inserts for machining hard materials.

User benefits:

  • 45-degree bevel angle - allows turning chamfers, undercuts and complex shapes inside holes.
  • Shankfi 25 mm - high rigidity of the shank allows stable work with a recommended overhang of up to 100 mm.
  • Center screw fastening - guarantees repeatable positioning and reduced time for insert replacement.
  • CCMT 09T3 standard - wide selection of rr radii gives you the ability to match roughness and depth of cut to the job.

Turning tool S25S SSSCR 09 Smoxh is designed for use in CNC and conventional lathes, offering repeatability and high precision in internal operations in both unit and batch production.

Read more

Product accessories

Torx T15 wrench

Reference: 0000006377 In stock > 10 items

€1.05

€1.29 brutto
