Description
Technical specifications of the S20 SSSCL 09 45 degree folding knife
| Technical data | |
|---|---|
| DCON shank width | 20 mm |
| Width H | 18 mm |
| Overall length L | 200 mm |
| Working height f | 15 mm |
| Minimum opening Dmin | 25 mm |
| Carbide insert matching | Carbide insert SCMT 09T308 |

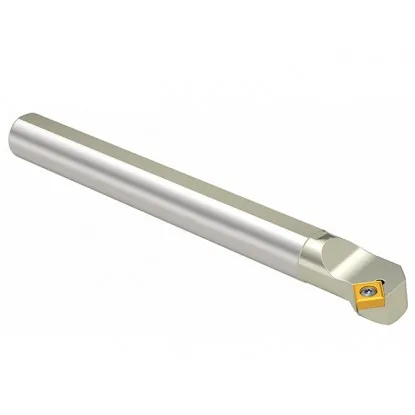

Turning tool s20 SSSCL 09 SCMT 09T3rr boring bar
Turning tool S20R SSSCL 09 Smoxh is a professional turning tool boring bar for internal turning, designed for CCMT 09T3rr inserts (rr - corner radius). The 45-degree bevel angle allows for 45-degree chamfers, undercuts, profiling and access to the bottom of holes. Left execution (L) means feed from left to right with standard spindle direction, making this model a complement to right-hand cutters in complex turning processes.
The toolholder works with CCMT 09T3 inserts with a C-shape (corner angle of 80 degrees) and a C-angle of 7 degrees. The center bolt fastening ensures stable establishment and quick installation, and the fi 20 mm shank offers high rigidity, allowing stable operation even at higher cutting parameters. The length of the shank extension should be selected according to its diameter, because the greater the extension, the higher the risk of vibration. The recommended rule is:
maximum overhang length = 4 × shank diameter
For a fi 20 mm shank, the maximum safe overhang is 80 mm.
Turning tool S20R SSSCL 09 Smoxh allows the use of CCMT 09T carbide inserts for steel, stainless steel, cast iron and aluminum, as well as CBN-tipped inserts for hard materials.
User benefits:
- 45-degree bevel angle - provides the ability to perform chamfers, undercuts and precision machining in confined hole spaces.
- Shank fi 20 mm - guarantees rigidity and stability of work with an overhang of up to 80 mm.
- Center screw fixing - repeatable positioning of the insert and quick replacement during work.
- CCMT 09T3 standard - allows selection of rr radius according to roughness and depth of cut requirements.
Turning tool S20R SSSCL 09 Smoxh is used in CNC and conventional lathes, providing precise and repeatable internal machining in unit and batch production, especially where a left-hand knife is required.
