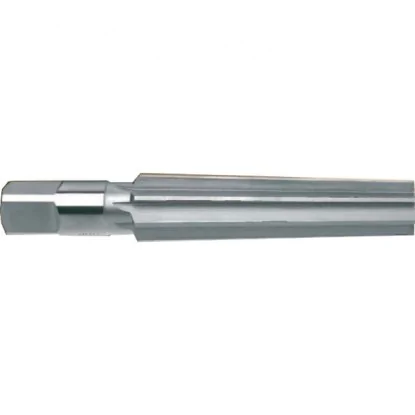

Morsea taper reamer MK0 DIN 204 C HSS
search
  • Morsea taper reamer MK0 DIN 204 C HSS
  • Morsea taper reamer MK0 DIN 204 C HSS - nr. 1
Varel

Morsea taper reamer MK0 DIN 204 C HSS

Varel Varel
14418
Diameter (mm): MK029 sizes of this reamer
€17.80 tax inc.

Net price: €14.47

Instant Shipping
W magazynie: 10-100 szt.
W magazynie: 10-100 szt.

Instant Shipping

Call and order: (44) 755-04-05

Description

Mounting taperMT0DIN 228 · taper ratio 1:20
MaterialHSShigh-speed steel (HSS)
Diameters d₁–d₂Ø6.6–9.4tip → shank
Number of cutting edgesZ = 6straight flutes

Technical data for the MT0 taper reamer

dimensions, standard, and shank specifications

Technical data
Mounting taperMorse taper MT0 (DIN 228)
Taper ratio / taper angle1:20 · 2.86°
Small diameter d₁Ø 6.6 mm
Large diameter d₂Ø 9.4 mm
Shank diameter d₃Ø 7.8 mm
Flute length l₂57 mm
Overall length L98 mm
Drive square width a8.3 mm
Number of cutting edges Z6 (straight flutes)
MaterialHSS (high-speed steel)
Type / shankNRSa, hand-operated · straight shank with square drive
Morse taper reamer MT0 DIN 204 C HSS — drawing Hand reamer: square drive, round straight shank and tapered cutting section with 6 straight flutes. Largest diameter 9.4 mm at the shank, smallest diameter 6.6 mm at the tip. Ø 9.4 mm largest diameter (d₂) Ø 6.6 mm smallest diameter (d₁) drive straight shank tapered cutting section l₂ = 57 mm · Z = 6 cutting edges

MT0 taper reamer — features

construction, operation, and applications

Morse taper reamer MT0 (DIN 204 C) is a hand-operated finishing tool for precision sizing of Morse taper sockets No. 0. Its 6 straight cutting edges made from high-speed steel (HSS) HSS remove a thin layer, giving the socket an accurate profile, correct concentricity and a smooth taper surface.

The tool is operated by hand — the square drive, 8.3 mm across flats, fits into a tap wrench, and machining is performed with an even, steady motion in one direction. The constant taper ratio of 1:20 (taper angle 2.86°) matches the standardized MT0 profile according to DIN 228. Distributing the cut across 6 edges improves roundness and dampens vibration, while the tapered tip ensures concentric entry.

A hand reamer has a longer tapered lead and more cutting edges than a machine reamer, making even cutting easier with manual feed. It is suitable for sizing and restoring MT0 sockets in machine tool spindles, reduction sleeves and tool holders — wherever taper accuracy determines a tight, self-holding fit of the arbor.

Morse taper No. 0 is the smallest size in the series — it is found in precision bench drill presses, microspindles, drilling heads, and small holders and sleeves with small shanks. The NRSa MK0 reamer sizes these sockets where precise, concentric seating of small shanks is essential.

Taper ratio 1:20 — what it means in practice

the shallow Morse taper on this reamer

A taper ratio of 1:20 means that for every 20 mm of length, the diameter increases by 1 mm. This is a very shallow taper — to the naked eye, the tool looks almost cylindrical, and the difference only becomes apparent when comparing both ends. The diameter increases from Ø 6.6 mm at the tip (d₁) to Ø 9.4 mm at the shank (d₂); the included taper angle is only 2.86° (half-angle 1.43°).

Reamer taper ratio 1:20 — over 20 mm of length, the diameter increases by 1 mm, angle 2.86° Taper triangle for 1:20 with exaggerated vertical proportions. taper ratio 1:20 (enlarged) 2.86° +1 mm diameter 20 mm of length (vertical proportions exaggerated)

Manual machining — how to size an MT0 socket

tap wrench operation, cooling and inspection

Machining Morse taper sockets step by step

1Preparation

Clean and degrease the socket

2Mounting

Square drive 8.3 mm in the tap wrench

3Reaming

Clockwise rotation, with coolant

✓Inspection

Check the fit (bluing)

Practical tips:

  • Use oil or a coolant emulsion — this improves the surface finish and extends cutting edge life.
  • Turn the reamer evenly, without jerking; do not reverse it under load, to avoid chipping the cutting edges.
  • After machining, remove chips from the flutes and socket before checking the fit.
  • Check the taper fit by bluing — an even contact pattern indicates full surface contact.

Hand reamer — intended for manual operation (tap wrench), not for high-speed machine operation. HSS loses hardness above approx. 600 °C, so lubricate generously. Do not use on steels hardened above 45 HRC.

Applications — workpiece materials

classification according to ISO 513

ISO groupMaterialSuitability
P Unalloyed steelgrades P1.2–P1.3 Recommended
N Nonferrous metalsaluminum, brass, bronze Recommended
K Cast irongray, ductile Suitable
M Stainless steelaustenitic With limitations
H Hardened steelabove 45 HRC Not recommended

Frequently asked questions

Morse taper sockets No. 0 (MT0) conforming to DIN 228 — in machine tool spindles, reduction sleeves and tool holders. The 1:20 taper ratio matches the standardized MT0 profile.

Morse taper MT0 is found in precision bench drill presses, microspindles and drilling heads, as well as small reduction sleeves. It is the smallest size in the Morse taper series.

By a square drive 8.3 mm across flats, held in a tap wrench. The 6 straight cutting edges guide the tool along the socket axis, ensuring an even machining allowance.

Unalloyed steels in grades P1.2–P1.3, nonferrous metals, cast iron and thermosetting plastics. Not suitable for steels hardened above 45 HRC.
