Technical data of long cutter for aluminum 3 mm VHM
| Technical data | |
|---|---|
| Working diameter d1 | 3 mm |
| Shank diameter d2 | 4 mm |
| Length of working part l2 | 9 mm |
| Overall length l1 | 100 mm |
| Number of blades | 3 |
Cutting parameters of long milling cutter for aluminum fi 3 mm
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| N | Aluminium | 160-320 | 0,045-0,059 |

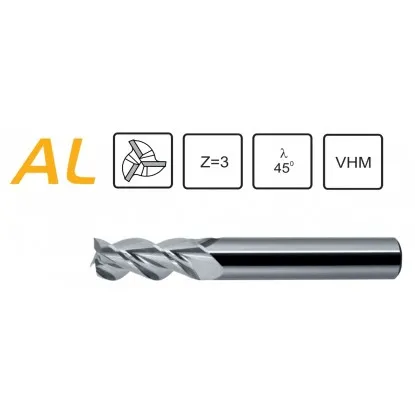

Aluminum long 3 mm VHM carbide cutter
Carbide end mill long the3 mm Z-3 VHM is a full-carbide end mill for machining aluminum alloys, copper and plastics, designed for extended overhang operations.
The 3 mm diameter, three cutting edges, 45-degree helix and polished chip grooves support clean, cool cutting of non-ferrous materials without coating. The h6 cylindrical shank conforms to DIN 6535-HA for repeatable clamping in ER sleeves, hydraulic and heat shrink toolholders. Geometry for right-hand machining with right-hand stroke reduces edge build-up. Execution according to DIN 6527 - long series - guarantees the right length of the working and overall part in HSC/HPC work.
- High performance in Al and Cu - 3 blades and 45-degree helix generate a fine chip, allowing higher feed rates while maintaining a smooth surface.
- Polished chip grooves - reduced adhesion and efficient chip flow reduce heat build-up and the risk of build-up in uncoated work.
- Stability at long overhang - h6 shank and balanced geometry reduce deflection and vibration, improving tolerance maintenance.
- Compliance with standards - DIN 6527 (long series), DIN 6535-HA (shank) make it easy to select a toolholder and configuration.
The description includes inquiries fi 3 long cutter for aluminum and fi 3 cutter for PVC, copper and aluminum, emphasizing work in non-ferrous materials and plastics with high surface quality and process stability.
