Description
| Technical Data | |
|---|---|
| ISO designation | SCKCR 25x25 K09 |
| Shank height (h) | 25 mm |
| Shank width (b) | 25 mm |
| Overall length (L) | 150 mm |
| Functional overhang (f) | 25 mm |
| Entering angle (κr) | 75° |
| Clearance angle | 7° (pos.) |
| Clamping system | ISO — center screw (S) |
| Insert type | CCMT 09T3rr |
| Cutting direction | R — right-hand |
| Manufacturer | Varel |

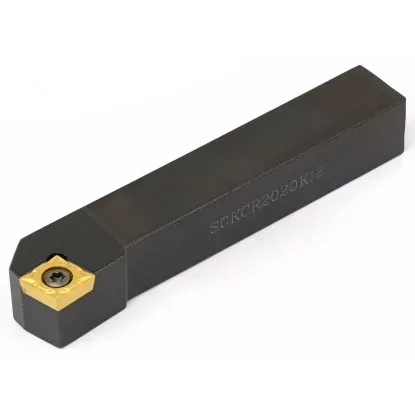

Professional 25×25 mm indexable turning tool for a CCMT insert
Turning tool SCKCR 25x25 K09 is a professional turning tool designed for external turning on conventional and CNC lathes. The shank with a cross section of 25×25 mm and a length of 150 mm provides the rigidity required for industrial machining. The geometry with an entering angle of 75° enables longitudinal turning with undercutting while maintaining good access to the machined surface.
The central screw clamping system (S) ensures the highest cutting edge positioning repeatability and easy replacement of the CCMT 09T3rr insert. The positive geometry of the 80° rhombic insert with 4 cutting edges is suitable for finishing, providing low cutting forces and a smooth machined surface. The tool is compatible with CCMT 09 inserts in various carbide grades — select the grade to match the workpiece material.
Cutting operations:
| ▸ | Longitudinal turning with profiling — the 75° angle provides good access to the workpiece profile |
| ▸ | Medium machining and finishing of steel and cast iron — positive CCMT geometry provides low cutting forces |
| ▸ | External taper turning — machining tapered and contoured surfaces |
| ▸ | Undercutting and recess machining — a smaller κr angle allows partial undercutting |
| ▸ | CNC production runs — quick insert replacement and repeatability |
Package contents for SCKCR 25x25 K09
Package contents:
| ✓ | Tool body SCKCR 25x25 K09 | 1 pcs |
| ✓ | Center screw for clamping the insert | 1 pcs |
| ✓ | Hex key for insert replacement | 1 pcs |
| ✗ | CCMT 09T3rr cutting insert (sold separately) | — |
CCMT 09T3rr
The cutting insert is not included in the set — must be purchased separately. CCMT insert. Positive geometry means that the insert is single-sided and has 4 cutting edges, providing low cutting forces and good surface quality.
Select the insert grade to match the workpiece material: P (structural steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the section "Related products" below.
Instructions for the center screw clamping system (S)
Unscrew the center screw 2-3 turns
Remove chips and debris
Position in the seat
Torque 1.5–2.5 Nm
Important: Do not exceed the recommended tightening torque — this may damage the thread in the seat or crack the insert.
Checks before starting work:
| ▸ | Tool overhang — do not exceed 1.5× the shank height without support |
| ▸ | Cutting edge height — set the cutting edge at spindle center height (±0.05 mm) |
| ▸ | Insert seat condition — check that the contact surface is not damaged or worn |
| ▸ | Secure clamping — the insert must have no play in the seat |
| ▸ | Indexing — when an edge wears out, rotate the insert to a fresh edge (4 edges in total) |
Note: Use coolant during machining — it extends insert life and improves surface finish. When machining without coolant, reduce the cutting parameters by 20–30%.
This tool accepts inserts CCMT 09T3rr in any carbide grade. Select the grade to match the workpiece material: P (steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the "Related products" section below.
The 75° entering angle provides good access to the workpiece profile. It is suitable for longitudinal turning, contour profiling, and recess machining.
The CCMT insert has positive geometry (clearance angle 7°), which means it is single-sided with 4 cutting edges. When one edge wears out, rotate the insert to a fresh edge.
Reference: 0000003710 In stock > 10 items
€4.69 brutto
No customer reviews for the moment.
