Description
CROSS SECTION 12×12 mm
LENGTH mm
INSERT CCMT 0602rr
ANGLE κr 90°
Technical specifications of the SCFCR 12X12 H06 turning tool
| Technical Data | |
|---|---|
| ISO designation | SCFCR 12X12 H06 |
| Shank height (h) | 12 mm |
| Shank width (b) | 12 mm |
| Overall length (L) | mm |
| Entering angle (κr) | 90° |
| Clearance angle | 7° (pos.) |
| Clamping system | ISO — center screw (S) |
| Insert type | CCMT 0602rr |
| Cutting direction | R — right-hand |
| Manufacturer | Varel |

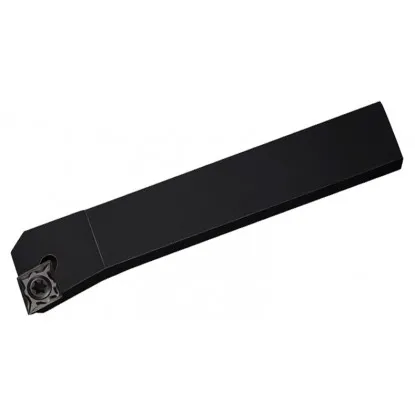

SCFCR 12X12 H06 turning tool – for facing and longitudinal turning
Professional 12×12 mm indexable turning tool for a CCMT insert
Turning tool SCFCR 12X12 H06 is a professional turning tool designed for external turning on conventional and CNC lathes. The shank with a 12×12 mm cross section and a length of mm provides the rigidity required for industrial machining. The geometry with a 90° entering angle enables facing and longitudinal turning along a shoulder.
The central screw clamping system (S) ensures the highest cutting edge positioning repeatability and easy replacement of the CCMT 0602rr insert. The positive geometry of the 80° rhombic insert with 4 cutting edges is suitable for finishing, providing low cutting forces and a smooth machined surface. The tool is compatible with CCMT 06 inserts in various carbide grades — select the grade to match the workpiece material.
Typical applications of the SCFCR 12X12 H06 turning tool
Cutting operations:
| ▸ | Facing — the 90° angle provides uniform cutting of the end face |
| ▸ | Turning along shoulders — the right angle allows machining 90° corners |
| ▸ | Machining steel and cast iron materials — positive CCMT geometry provides low cutting forces |
| ▸ | Turning steps and flanges — precision machining of diameter transitions |
| ▸ | CNC production runs — repeatable cutting edge positioning and quick replacement |
Included
Package contents for SCFCR 12X12 H06
Package contents:
| ✓ | Tool body SCFCR 12X12 H06 | 1 pcs |
| ✓ | Center screw for clamping the insert | 1 pcs |
| ✓ | Hex key for insert replacement | 1 pcs |
| ✗ | CCMT 0602rr cutting insert (sold separately) | — |
Compatible CCMT 0602rr insert
CCMT 0602rr
The cutting insert is not included in the set — must be purchased separately. CCMT insert. Positive geometry means that the insert is single-sided and has 4 cutting edges, providing low cutting forces and good surface quality.
Select the insert grade to match the workpiece material: P (structural steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the section "Related products" below.
Insert installation and replacement for the SCFCR 12X12 H06 turning tool
Instructions for the center screw clamping system (S)
Insert replacement procedure step by step
1 Unscrew the screw
Unscrew the center screw 2-3 turns
2 Clean the insert seat
Remove chips and debris
3 Install the insert
Position in the seat
4 Tighten the screw
Torque 0.6–1.2 Nm
Important: Do not exceed the recommended tightening torque — this may damage the thread in the seat or crack the insert.
Checks before starting work:
| ▸ | Tool overhang — do not exceed 1.5× the shank height without support |
| ▸ | Cutting edge height — set the cutting edge at spindle center height (±0.05 mm) |
| ▸ | Insert seat condition — check that the contact surface is not damaged or worn |
| ▸ | Secure clamping — the insert must have no play in the seat |
| ▸ | Indexing — when an edge wears out, rotate the insert to a fresh edge (4 edges in total) |
Note: Use coolant during machining — it extends insert life and improves surface finish. When machining without coolant, reduce the cutting parameters by 20–30%.
Frequently asked questions — SCFCR 12X12 H06
This tool accepts inserts CCMT 0602rr in any carbide grade. Select the grade to match the workpiece material: P (steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the "Related products" section below.
The entering angle of 90° provides facing perpendicular to the axis and turning along shoulders. Ideal for machining flanges, steps, and right angles on the workpiece.
The CCMT insert has positive geometry (clearance angle 7°), which means it is single-sided with 4 cutting edges. When one edge wears out, rotate the insert to a fresh edge.
Product accessories
Carbide insert CCMT 060202 H6310 Horn
Reference: 0000006504 In stock > 10 items
€3.16
€3.88 brutto
Carbide insert CCMT 060204 H6310 Horn
Reference: 0000005754 In stock > 10 items
€3.16
€3.88 brutto
