Turning tool SCKCR 20x20 K12 Varel
search
  • Turning tool SCKCR 20x20 K12 Varel
  • Turning tool SCKCR 20x20 K12 Varel - nr. 1
Varel

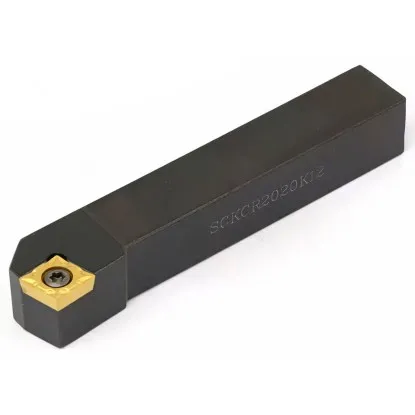

Turning tool SCKCR 20x20 K12 Varel

Varel Varel
14787
Shank: 20x20 mm2 sizes of this turning tool
€25.89 tax inc.

Net price: €21.05

Instant Shipping
W magazynie: 10-100 szt.
W magazynie: 10-100 szt.

Instant Shipping

Call and order: (44) 755-04-05

Description

CROSS SECTION 20×20 mm
LENGTH 125 mm
INSERT CCMT 1204rr
ANGLE κr 75°

Technical specifications of the SCKCR 20x20 K12 turning tool

Technical Data
ISO designation SCKCR 20x20 K12
Shank height (h) 20 mm
Shank width (b) 20 mm
Overall length (L) 125 mm
Functional overhang (f) 25 mm
Entering angle (κr) 75°
Clearance angle 7° (pos.)
Clamping system ISO — center screw (S)
Insert type CCMT 1204rr
Cutting direction R — right-hand
Manufacturer Varel

SCKCR 20x20 K12 turning tool – for longitudinal turning and profiling

Professional 20×20 mm indexable turning tool for a CCMT insert

Turning tool SCKCR 20x20 K12 is a professional turning tool designed for external turning on conventional and CNC lathes. The shank with a cross section of 20×20 mm and a length of 125 mm provides the rigidity required for industrial machining. The geometry with an entering angle of 75° enables longitudinal turning with undercutting while maintaining good access to the machined surface.

The central screw clamping system (S) ensures the highest cutting edge positioning repeatability and easy replacement of the CCMT 1204rr insert. The positive geometry of the 80° rhombic insert with 4 cutting edges is suitable for finishing, providing low cutting forces and a smooth machined surface. The tool is compatible with CCMT 12 inserts in various carbide grades — select the grade to match the workpiece material.

Typical applications of the SCKCR 20x20 K12 turning tool

Cutting operations:

▸ Longitudinal turning with profiling — the 75° angle provides good access to the workpiece profile
▸ Medium machining and finishing of steel and cast iron — positive CCMT geometry provides low cutting forces
▸ External taper turning — machining tapered and contoured surfaces
▸ Undercutting and recess machining — a smaller κr angle allows partial undercutting
▸ CNC production runs — quick insert replacement and repeatability

Included

Package contents for SCKCR 20x20 K12

Package contents:

✓ Tool body SCKCR 20x20 K12 1 pcs
✓ Center screw for clamping the insert 1 pcs
✓ Hex key for insert replacement 1 pcs
✗ CCMT 1204rr cutting insert (sold separately) —

Compatible CCMT 1204rr insert

CCMT 1204rr

The cutting insert is not included in the set — must be purchased separately. CCMT insert. Positive geometry means that the insert is single-sided and has 4 cutting edges, providing low cutting forces and good surface quality.

Select the insert grade to match the workpiece material: P (structural steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the section "Related products" below.

Insert installation and replacement for the SCKCR 20x20 K12 turning tool

Instructions for the center screw clamping system (S)

Insert replacement procedure step by step

1 Unscrew the screw

Unscrew the center screw 2-3 turns

2 Clean the insert seat

Remove chips and debris

3 Install the insert

Position in the seat

4 Tighten the screw

Torque 1.5–2.5 Nm

Important: Do not exceed the recommended tightening torque — this may damage the thread in the seat or crack the insert.

Checks before starting work:

▸ Tool overhang — do not exceed 1.5× the shank height without support
▸ Cutting edge height — set the cutting edge at spindle center height (±0.05 mm)
▸ Insert seat condition — check that the contact surface is not damaged or worn
▸ Secure clamping — the insert must have no play in the seat
▸ Indexing — when an edge wears out, rotate the insert to a fresh edge (4 edges in total)

Note: Use coolant during machining — it extends insert life and improves surface finish. When machining without coolant, reduce the cutting parameters by 20–30%.

Frequently asked questions — SCKCR 20x20 K12

This tool accepts inserts CCMT 1204rr in any carbide grade. Select the grade to match the workpiece material: P (steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the "Related products" section below.

The 75° entering angle provides good access to the workpiece profile. It is suitable for longitudinal turning, contour profiling, and recess machining.

The CCMT insert has positive geometry (clearance angle 7°), which means it is single-sided with 4 cutting edges. When one edge wears out, rotate the insert to a fresh edge.
