Description
| Technical data | |
|---|---|
| ISO designation | SCACR 08x08 E06 |
| Shank height (h) | 8 mm |
| Shank width (b) | 8 mm |
| Overall length (L) | 70 mm |
| Functional overhang (f) | 10 mm |
| Entering angle (κr) | 90° |
| Clearance angle | 7° (pos.) |
| Clamping system | ISO — center screw (S) |
| Insert type | CCMT 0602rr |
| Cutting direction | R — right-hand (L version available) |
| Manufacturer | Varel |

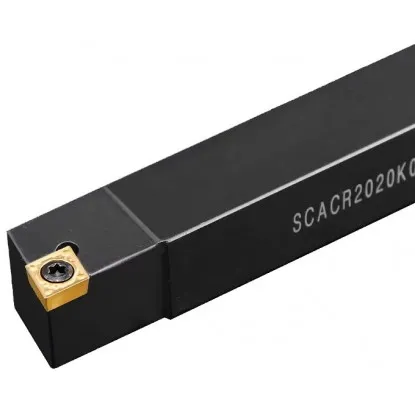

8×8 mm indexable turning tool for a CCMT insert
Turning tool SCACR 08x08 E06 is an indexable turning tool designed for external turning on conventional and CNC lathes. The shank, with a cross section of 8×8 mm and a length of 70 mm, provides the rigidity required for industrial machining. The geometry with an entering angle of 90° allows facing and turning along a shoulder.
In the central screw clamping system (S), the screw secures the CCMT 0602rr insert through its hole, so only one screw needs to be loosened for replacement. The positive geometry of the 80° diamond insert with 2 cutting edges is well suited to finishing, providing low cutting forces and a smooth machined surface. The turning tool is compatible with CCMT 06 inserts in various carbide grades — select the grade to match the workpiece material.
What the individual letters in the ISO designation mean





Cutting operations:
| ▸ | Facing — the 90° angle provides uniform cutting of the end face |
| ▸ | Turning along shoulders — the right angle allows machining 90° corners |
| ▸ | Machining steel and cast iron — positive CCMT geometry provides low cutting forces |
| ▸ | Turning steps and flanges — machining diameter transitions |
| ▸ | CNC production runs — repeatable cutting edge positioning and quick replacement |
Package contents for SCACR 08x08 E06
Package contents:
| ✓ | Tool body SCACR 08x08 E06 | 1 pcs |
| ✓ | Center screw for clamping the insert | 1 pcs |
| ✓ | Hex key for insert replacement | 1 pcs |
| ✗ | CCMT 0602rr cutting insert (sold separately) | — |
CCMT 0602rr
The cutting insert is not included in the set — must be purchased separately. CCMT insert. Positive geometry means that the insert is single-sided and has 2 cutting edges, providing low cutting forces and good surface quality.
Select the insert grade to match the workpiece material: P (structural steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the section "Related products" below.
Instructions for the center screw clamping system (S)
Unscrew the center screw 2-3 turns
Remove chips and debris
Position in the seat
Torque 1.5–2.5 Nm
Important: Do not exceed the recommended tightening torque — this may damage the thread in the seat or crack the insert.
Checks before starting work:
| ▸ | Tool overhang — do not exceed 1.5× the shank height without support |
| ▸ | Cutting edge height — set the cutting edge at spindle centerline height |
| ▸ | Insert seat condition — check that the contact surface is not damaged or worn |
| ▸ | Secure clamping — the insert must have no play in the seat |
| ▸ | Indexing — when an edge wears out, rotate the insert to a fresh edge (2 edges in total) |
Note: Use coolant during machining — it extends insert life and improves surface finish. When machining without coolant, reduce the cutting parameters by 20–30%.
This tool accepts inserts CCMT 0602rr in any carbide grade. Select the grade to match the workpiece material: P (steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the "Related products" section below.
The entering angle of 90° provides facing perpendicular to the axis and turning along shoulders. Suitable for machining flanges, steps and right-angle corners on the workpiece.
The CCMT insert has positive geometry (clearance angle 7°), which means it is single-sided with 2 cutting edges. When one edge wears out, rotate the insert to a fresh edge.
