Outside micrometer 0-25 mm 0.01 mm
11028
€29.13 tax inc.
Net price: €23.68
Description

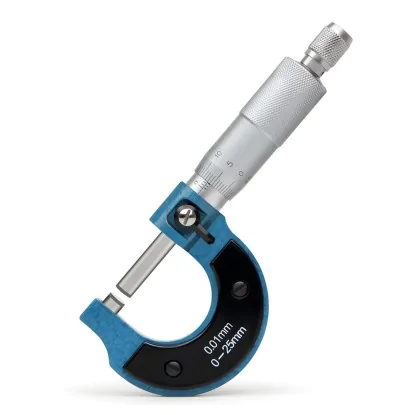

Outside micrometer 0–25 mm – 0.01 mm resolution
Technical data and instrument construction
| Technical data | |
|---|---|
| Measuring range | 0–25 mm |
| Resolution | 0.01 mm |
| Measuring face flatness | 0.006 mm |
| Measuring tips | cemented carbide |
| Ratchet force | 5–10 N |
| Micrometer screw pitch | 0.5 mm per revolution |
| Spindle lock | yes |
| Included | adjusting wrench |
READOUT0.01 mm
TIPScemented carbide
MEASURING FORCE5–10 N
LOCKspindle
MMZb outside micrometer – construction and applications
Applications for an instrument with this measuring range
Outside micrometer 0–25 mm is an analog measuring instrument with a resolution of 0.01 mm. It measures diameters and thicknesses where a caliper is no longer sufficient. The rigid bow-shaped frame (hence the MMZb designation) maintains stable measuring face spacing, while the micrometer screw with a pitch of 0.5 mm converts thimble rotation into precise spindle travel.
The measuring faces are made of cemented carbide, which resists wear during daily workshop use. The ratchet limits the measuring force to 5–10 N, ensuring that every measurement is made with the same force. The reading can be held with the spindle lock and read comfortably after removing the instrument from the workpiece. DIN 863 specifies the accuracy requirements for micrometers in this class.
Typical applications:
- measuring the diameters of shafts, pins, sleeves, and wires in the 0–25 mm range,
- checking the thickness of sheet metal, walls, and flat bars to an accuracy of 0.01 mm,
- checking dimensions after grinding and finish turning,
- in-process inspection at the machine tool and at the quality control station.
How to read the measurement
Sleeve and thimble scales step by step
Sleeve
12.50
+
Thimble
0.32
=
Measurement result
12.82 mm
The result consists of two readings. Whole and half millimeters are read on the sleeve — the whole-millimeter marks are below the reference line, and the 0.5 mm marks are above it. Hundredths of a millimeter are read on the thimble at the reference line. In the illustrated example, the thimble edge has passed the 12.5 mark, and the reference line indicates division 32, giving a result of 12.82 mm.
Steel expands by approximately 11.5 µm per meter for a temperature change of 1°C. A workpiece with a diameter of 25 mm that is 5°C warmer than the instrument is approximately 0.001 mm larger. The workpiece and micrometer should therefore be at the same temperature, preferably close to 20°C.
Do not tighten the spindle beyond the ratchet's slipping point
Excessive force distorts the result and can permanently deform the measuring faces. Turn only the ratchet knob until it starts to slip, then hold the reading with the spindle lock.
Micrometer precision in figures
Parameters relevant to workshop tolerances
0.006 mm
Measuring face flatness
Carbide tips maintain their flatness through years of daily workshop use.
50 divisions
One thimble revolution = 0.5 mm
The micrometer screw pitch divided into 50 divisions gives a reading of 0.01 mm per division.
5–10 N
Constant ratchet force
The ratchet slips when the measuring force is reached — the result does not depend on the operator's hand force.
Set contents and zero setting
Preparing for the first measurement
Included
Adjusting wrench
For adjusting the sleeve when setting zero on the setting standard.
Before measurement, set zero with the faces in contact: close the clean measuring tips using the ratchet and check that the scale reads exactly 0.00 mm. Correct any deviation by rotating the sleeve with the adjusting wrench.
Measuring with a micrometer step by step
Procedure for repeatable results
Four steps to a repeatable result
1 Set zero on the standard
faces in contact: 0.00 mm
2 Close using the ratchet
force: 5–10 N
3 Lock the spindle
lock reading
✓ Read the result
resolution: 0.01 mm
Full reading: sleeve reading plus thimble reading.
The 0–25 mm outside micrometer combines a simple, reliable analog design with a resolution of 0.01 mm. Carbide measuring tips, constant ratchet force, and a spindle lock ensure repeatable results over years of use. It is essential equipment for quality control stations wherever outside diameter measurement must be more reliable than with a caliper.
Frequently asked questions
Bring the clean tips into contact and check for a reading of 0.00 mm; correct any deviation with the adjusting wrench. Set zero at a temperature close to 20°C with clean measuring faces.
In a micrometer, the measurement axis coincides with the scale axis (Abbe's principle), and the ratchet stabilizes the measuring force. This makes a 0.01 mm reading reliable, whereas a caliper is practically limited to 0.05 mm. Choose a micrometer for tighter tolerances.
The lock clamps the spindle after it closes onto the workpiece, so the reading does not change when the instrument is removed. This is convenient when measuring in locations where the scale is difficult to read and when transferring a dimension to another workpiece.
Product accessories
Reviews
No customer reviews for the moment.
Shipping
All orders are delivered by courier company GLS. For orders exceeding 369 PLN gross shipping is FREE
