Description
Technical data for the Ø30 mm 90° countersink
| Technical data | |
|---|---|
| Cutting edge angle | 90 degrees |
| Maximum bore diameter D | fi 30 mm |
| Minimum bore diameter D1 | 4.2 mm |
| Diameter of the shank part d | 12 mm |
| total length L | 71 mm |
| Flute length l | 18 mm |
| Number of cutting edges Z | 3 |
| Tool material | HSSE high-speed steel |
Cutting data for the Ø30 mm 90° countersink
| Material | Vc [m/min] | Feed per tooth fz [mm/tooth] | n [rpm] | Total feed rate f [mm/min] |
|---|---|---|---|---|
| PSteel | 22 | 0.075 | 234 | 53 |
| MStainless steel | 12.5 | 0.037 | 133 | 26 |
| KCast iron | 10 | 0.05 | 106 | 16 |
| NAluminum | 62 | 0.15 | 658 | 296 |

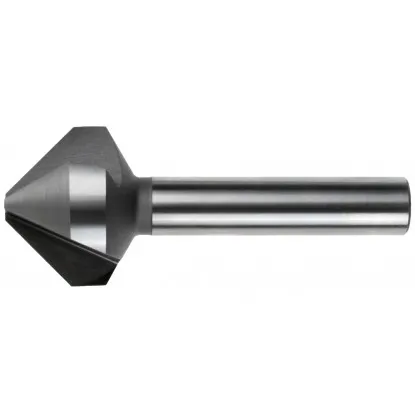

Countersink Ø30 mm 90° DIN 335 C HSSE is a high-quality tool designed for precision countersinking of holes in metallic materials. Compliant with DIN 335 C, equipped with three symmetrically spaced cutting edges, which provide excellent stability during operation, resulting in a uniform finish on the machined surface and a minimized risk of vibration.
Application Ø30 mm 90° countersink for stainless steel ensures effective machining of difficult-to-machine materials such as austenitic steels, brass, bronze and aluminum alloys. Made of cobalt-alloyed high-speed steel (HSSE), the tool offers increased wear resistance and long service life even under high thermal loads.
High-quality cutting surface enables the production of smooth countersinks for countersunk screw heads and the machining of hole entrances. The robust straight shank ensures firm clamping in the chuck and secure tool guidance in automatic or manual cycles.
- Increased durability – the cobalt-alloyed HSSE steel allows the tool to operate steadily and last longer than standard countersinks.
- Three cutting edges – ensure smooth, precise operation without runout, improving workpiece quality.
- High finish quality – perfectly smooth countersinks, ready for fastener installation.
- Versatility of applications – suitable for both automated CNC machining and manual operation.
- Ideal for nonferrous metals and stainless steels – maintaining clean, even hole edges.
Ø30 mm 90° countersink is an essential tool in every professional toolroom, ensuring repeatability and workpiece quality that meet the highest technical requirements.
