Description
| Technical data | |
|---|---|
| Shape | round (R) |
| Insert diameter Ø | 12 mm |
| Insert thickness s | 4.76 mm |
| Insert radius | 6 mm |
| Clearance angle α | 15° |
| Grade | H6310 (PVD-coated carbide) |
face and copy milling — conservative ranges for ISO P and M groups
| Material | Vc [m/min] | Feed fz [mm/tooth] | ap [mm] | ae [% D] |
|---|---|---|---|---|
| PSteel | 150-220 | 0.10-0.22 | 0.5-3.0 | 60-80 |
| MStainless steel | 80-140 | 0.08-0.18 | 0.3-2.0 | 50-70 |
round 15° geometry for copy and profile milling

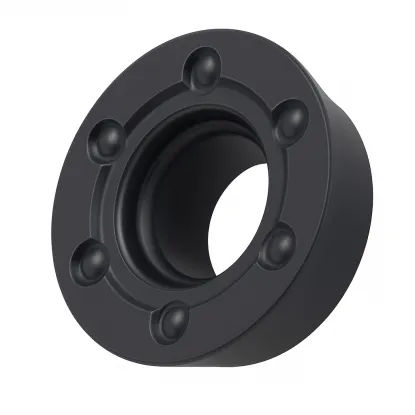

The RDMW 1204 milling insert is a round indexable insert made of grade H6310 cemented carbide, designed for milling steel and stainless steel. The round shape (letter R) and fifteen-degree clearance angle provide an edge without a corner that distributes the load over the entire contact arc. This makes the round insert mechanically strong and well suited to interrupted milling. The effective entering angle increases with depth of cut, so cutting forces remain low at shallow depths. This makes it suitable for copy, profile and plunge milling, as well as machining three-dimensional molds.
The RDMW 1204 MO insert is suitable for milling heads used for roughing and shaping three-dimensional surfaces in structural steel and stainless steel components. Calculate the spindle speed using n = 1000·Vc/(π·D): for a head diameter of 50 mm at a cutting speed of 180 m/min, the result is approximately 1146 rpm. Calculate the table feed rate as vf = fz·z·n — with a feed per tooth (fz) of 0.15 mm and five inserts in the head, this gives approximately 860 mm/min. Grade H6310 indexable inserts are supplied by the Korean brand Horn.
Select a conservative depth of cut — an ap no greater than half the insert radius is recommended, or approximately 3 mm for a radius of 6 mm. At this depth, the effective entering angle remains moderate, and the thin chip limits forces and vibration. The PVD (physical vapor deposition) coating increases edge resistance to abrasive wear and elevated operating temperatures. For stainless steels, maintain a constant feed and continuous coolant flow to limit work hardening of the layer being cut. On CNC machines, prefer climb milling, which provides lower friction, longer edge life and a smoother machined surface.
Grade H6310 covers ISO groups P and M — it is not intended for hardened steels above 45 HRC or for efficient machining of cast iron and nonferrous metals.
how to read the RDMW 1204 code — designation positions 1–6
Designation RDMW 1204 according to the standard ISO 1832: 4 letters describe geometry and construction, 2 numeric codes describe dimensions. Each field has a number, an icon, and a brief description.
ISO 1832 designation decoder — how to read the code
Positions 1–3 · ISO code
1RShape
Round
peripheral edge without corners
2DClearance angle
α = 15°
positive, single-sided
3MTolerance
Class M (intermediate)
IC ±0.08 · thickness ±0.13 mm
Positions 4–6
4WType
Countersunk hole, no chip breaker
40–60° countersink, smooth rake face
512Diameter
d = 12 mm
round insert — full radius
604Thickness
s = 4.76 mm
between rake faces
✓ Peripheral edge — full circle, no corners
grade H6310 range — ISO P and M groups
| Workpiece material | ISO group | Recommendation |
|---|---|---|
| Unalloyed and alloy steel | P | ✔ recommended |
| Stainless and acid-resistant steel | M | ✔ recommended |
| Heat-resistant superalloys, titanium and its alloys | S | ✗ outside the range |
| Hardened steel above 45 HRC | H | ✗ not recommended |
| Cast iron, nonferrous metals | K / N | ✗ outside the range |
materials, round geometry and milling data selection
Grade H6310 is a PVD-coated carbide for groups ISO P (steel P20-P40) and ISO M (stainless steel M20-M40): unalloyed, alloy, stainless and acid-resistant steels. It is not intended for hardened steels above 45 HRC or for heat-resistant superalloys in ISO S.
The round edge has no corner that could chip, making the insert very strong. The effective entering angle increases with depth of cut — at shallow depths, forces are low, which benefits copy and profile milling of three-dimensional molds.
As a conservative guideline, set ap no greater than half the insert radius, or approximately 3 mm for a radius of 6 mm. Calculate the effective entering angle using κ ≈ arccos((R−ap)/R): at ap 1 mm it is approximately 34°, and at 3 mm it increases to 60°.
The insert diameter is 12 mm, thickness 4.76 mm, and the radius is 6 mm. The clearance angle is 15° (letter D in the designation), and the carbide grade is H6310.
