Description
Technical specifications of the S16 SSSCL 09 45 degree folding knife
| Technical data | |
|---|---|
| DCON shank width | 16 mm |
| Width H | 15 mm |
| Overall length L | 170 mm |
| Working height f | 13 mm |
| Minimum bore Dmin | 21 mm |
| Carbide insert matching | Carbide insert SCMT 09T308 |

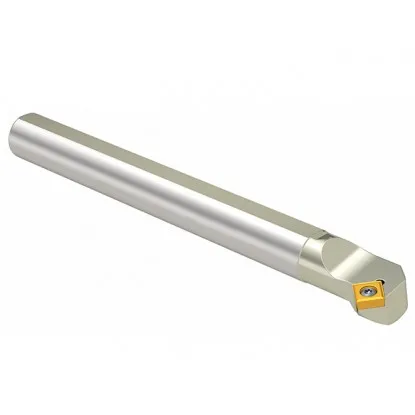

Turning tool s16P SSSCL left boring bar 09 SCMT 09T3rr
Turning tool S16P SSSCL left 09 Smoxh is a professional turning tool boring bar for internal turning, designed for CCMT 09T3rr inserts (rr - corner radius). The 45-degree bevel angle makes it possible to perform 45-degree chamfers, undercuts, profiling and to reach the bottom of holes. The left-hand execution (L) means feed from left to right with the standard direction of spindle rotation, which allows the tool to be used in operations requiring the opposite configuration to standard right-hand cutters.
The toolholder works with CCMT 09T3 inserts with a C-shape (corner angle of 80 degrees) and a C-angle of 7 degrees. Mounting with a central screw guarantees stable fixation and quick insert change, and the fi 16 mm shank provides adequate rigidity in internal machining. An important factor is the length of the shank extension - the greater the extension in relation to the diameter, the greater the risk of vibration. The recommended selection rule is:
maximum extension length = 4 × shank diameter
For a fi 16 mm shank, this means a maximum safe extension of 64 mm.
Turning tool S16P SSSCL 09 Smoxh allows you to clamp CCMT 09T carbide inserts for steel, stainless steel, cast iron and aluminum, as well as CBN-tipped inserts for machining hard materials.
User benefits:
- 45-degree bevel angle - allows turning chamfers, undercuts and accurate machining in hard-to-reach bore areas.
- Shank fi 16 mm - ensures tool stability with a recommended overhang of up to 64 mm.
- Center screw mounting - ensures repeatable insert positioning and quick installation.
- Standard CCMT 09T3 - a wide selection of rr radii allows to adapt the tool to the required surface roughness and depth of cut.
Turning tool S16P SSSCL 09 Smoxh will perform well in CNC and conventional lathes, providing high repeatability and precision in internal operations, especially where a left-hand knife is required.
