Description
Technical data of the S12 SCKCR 09 right-hand turning lathe knife
| Technical data | |
|---|---|
| Shank height d | 12 mm |
| Width of shank H | 11 mm |
| Overall length L | 150 mm |
| Distance to knife axis f | 8,5 mm |
| Overall length l2 | 30 mm |
| Distance h | 11 mm |
| Minimum diameter | 16 mm |
| Carbide insert cutting | CCM. 09T3rr |

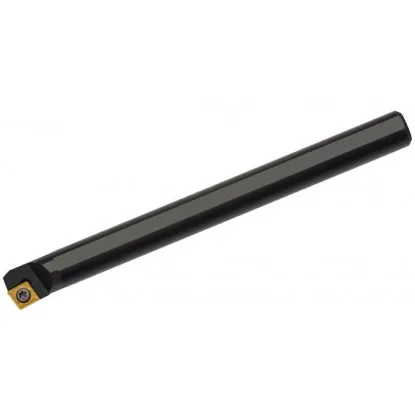

Turning tool S12 SCKCR CCMT 09T3rr Varel
Turning tool S12M SCKCR 09 Varel is a high-performance lathe boring bar for internal machining, designed to work with CCMT 09T3 inserts.... The right-hand variant, with a 75° angle, is designed for precise and stable hole turning on conventional and CNC lathes.
Thanks to its solid shank with a diameter of 12 mm (type S12M), the tool provides greater rigidity and resistance to vibration, enabling higher performance cutting. The SCKCR clamping system allows for secure and fast clamping of cutting inserts, and the geometry adapted to the 09T3 insert allows for greater depths of cut and higher productivity.
- Greater cutting efficiency - the use of the CCMT 09T3 insert enables machining at higher ap and higher tool life.
- Stability during operation - the 12 mm diameter guarantees the rigidity necessary for machining deep holes without vibration.
- SCKCR geometry with 75° angle - ensures optimal hole entry line and smooth cutting process.
- Versatility of use - the tool is suitable for machining structural steels, cast iron and stainless steels.
This is a reliable tool for users looking for high precision, durability and repeatability when boring holes of larger diameters.
Product accessories
Carbide insert CCMT 09T308 H6310 Horn
Reference: 0000003710 In stock > 10 items
€3.55
€4.37 brutto
