Description
Technical data of the S12 SCKCR 06 right-hand turning lathe knife
| Technical data | |
|---|---|
| Shank height d | 12 mm |
| Width of shank H | 11 mm |
| Overall length L | 150 mm |
| Distance to knife axis f | 8,5 mm |
| Overall length l2 | 25 mm |
| Distance h | 11 mm |
| Minimum diameter | 16 mm |
| Carbide insert cutting | CCM. 0602rr |

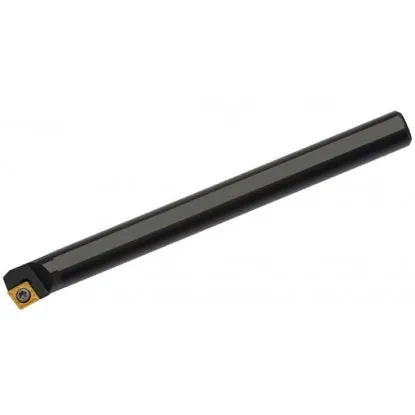

Turning tool S12 SCKCR CCMT 0602rr Varel
Turning tool S12M SCKCR 06 Varel is a professional turning boring bar for internal machining with CCMT 0602 cutting insert.... Designed with a 75° clamping angle and a 12mm diameter shank, dedicated to precision hole turning in production and unit applications.
Thanks to its robust design and SCKCR-type clamping system, the tool provides high process stability as well as efficient chip removal. The thicker shank (type S12M) allows safe operation at greater boring depths and with higher cutting parameters, while maintaining full control over surface quality.
- Stable hole machining - the 12 mm shank diameter provides the rigidity needed for deep boring and reduces the risk of vibration.
- Optimal cutting geometry - SCKCR system with 75° angle allows precise entry and control of tool path inside the hole.
- Compatible with CCMT 0602 inserts - widely available and economical inserts, ensuring high cutting quality in a variety of materials.
- Universal application - the tool is ideal for machining steel, cast iron and stainless alloys in CNC and conventional production.
The solution is ideal for companies that expect reliability, repeatability and performance when machining holes in demanding production conditions.
Product accessories
Carbide insert CCMT 060202 H6310 Horn
Reference: 0000006504 In stock > 10 items
€3.16
€3.88 brutto
Carbide insert CCMT 060204 H6310 Horn
Reference: 0000005754 In stock > 10 items
€3.16
€3.88 brutto
