Tap Trapezoidal Tr 24X5 for DIN 103 steel - nr. 1
search
  • Tap Trapezoidal Tr 24X5 for DIN 103 steel - nr. 1
  • Tap Trapezoidal Tr 24X5 for DIN 103 steel - nr. 2
  • Tap Trapezoidal Tr 24X5 for DIN 103 steel - nr. 3

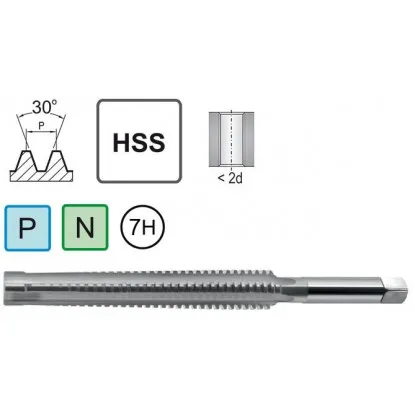

Tap Trapezoidal Tr 24X5 HSS DIN 103 7H Varel

Varel Varel
0000006751
€145.66 tax inc.

Net price: €118.42

Instant Shipping
In stock > 10 pcs.
In stock > 10 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data of machine threader Tr 24x5

Technical data
Thread diameter d1 Tr 24x5 mm
Thread pitch P 5 mm
Total length l1 230 mm
Working length l2 165 mm
Shank diameter d2 18 mm
Length of shank square a 14 mm
Threaded hole diameter 19 mm
Gwintownik trapezowy rysunek

Tap Trapezoidal Tr 24x5 HSS DIN 103 7H is a precision cutting tool designed for cutting right-hand trapezoidal threads with a pitch of 5 mm. Made of high quality HSS, it provides high wear resistance, dimensional stability and reliability in continuous operation.

Tr 24x5 trapezoidal threads are used in mechanisms that transmit significant axial forces, such as drive screws, actuators, industrial elevators or positioning systems. The 5mm pitch is the optimal solution for systems where both accuracy and efficiency of linear movement are important. Compliance with DIN 103 and 7H tolerance guarantees high repeatability and precise fit.

Tap Trapezoidal Tr 24x5 HSS DIN 103 7H can be successfully used on CNC machine tools and conventional lathes. The tool is designed for machining structural steel, aluminum, brass, bronze and other technical materials.

  • Tool durability - HSS steel ensures long life and wear resistance.
  • Strokeof 5 mm - ideal for drive and lifting mechanisms with heavy loads.
  • Accuracy of manufacture - DIN 103 standard and 7H tolerance ensure precision threading.
  • Versatility - for CNC and classic machines, suitable for many construction materials.
