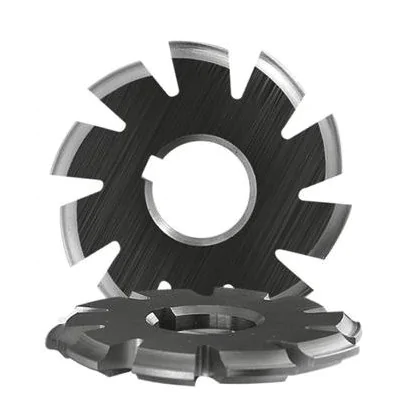

Modular disc cutter M1.25 NR2 HSS

Fenes Narzędzia Fenes Narzędzia
041726
Module: 1,2516 sizes of this cutter
€32.37 tax inc.

Net price: €26.32

Instant Shipping
W magazynie: 2 pcs.
W magazynie: 2 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical Data
Diameter D 16 mm
Diameter d 50 mm
Number of teeth to be machined 14-16

Modular disc cutter M1,25 NR2 HSS

Modular circularmilling cutterM1,25 NR2 HSS is a precision tool designed for the shaped cutting of the outer serrations of gears with an involute outline. Included in the NFMa set, it corresponds to the second position of the milling cutter dedicated to the 1.25 module and serrations with a certain number of teeth.

Being made of HSS high-speed steel, the cutter is characterized by high wear resistance and stability of the cutting edges when working in difficult cutting conditions. Staggered blades and a buttress angle of 20 degrees allow to obtain a smooth tooth surface, while reducing the risk of micro-cracks and improving the geometric parameters of the toothing.

  • Evolute profile - ensures compliance with industrial gear standards.
  • Staggered blades - improve surface quality and stability of the cutting process.
  • HSS steel - allows machining of hard materials while maintaining tool life.
  • Purpose: M1,25 NR2 cut ter - for gears with a certain range of number of teeth in accordance with the NFMa standard.
  • High precision - important in the production of gears and precision mechanisms.

Modular disc cutter M1,25 NR2 HSS is a reliable tool for manufacturers of gear systems, guaranteeing accuracy, durability and repeatability of machining.

Formulas for modular milling cutters

dp - pitch diameter,

P - nominal pitch (measured from the arc)

Z - number of teeth of the work wheel

m - nominal modulus

P.A.- adhesion angle 20 degrees

dp=z*m

m=P*PI
