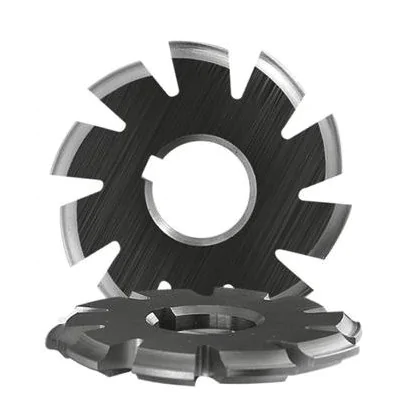

M3.5 NR3 HSS modular disc cutter

Fenes Narzędzia Fenes Narzędzia
0793
Module: 3,516 sizes of this cutter
€25.25 tax inc.

Net price: €20.53

Instant Shipping
W magazynie: 7 pcs.
W magazynie: 7 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data
Diameter D 27 mm
Diameter d 80 mm
Number of teeth to be machined 17-20

Modular circular milling cutter M3,5 NR3 HSS

Modular circular cutterM3,5 NR3 HSS is a high quality tool designed for precise cutting of the external serrations of gears with a module of 3,5. The cutter with the number NR3 is dedicated to machining gears with a medium number of teeth, providing a perfect reproduction of the involute profile and a smooth and precise cut surface.

Made of high-grade HSS, the cutter is characterized by durability and abrasion resistance, enabling efficient and repeatable operation even in harsh production conditions. The staggered blades and 20° buttress angle guarantee stability in the machining process, reducing vibration and micro-cracking. The tool complies with the NFMa standard, which allows it to be easily integrated into modular cutter sets.

  • Number NR3 - ideal for gears with an average number of teeth in the 3.5 module.
  • HSS high-speed steel - ensures tool life and reliability.
  • Precision revolute profile - guarantees compliance with construction standards.
  • Staggered blades - improve cutting quality and stabilize the machining process.
  • NFMa standard - allows easy replacement and adjustment of tools in modular sets.

The M3.5 NR3 HSS modular disc cutter is the perfect tool for professionals who value precision and repeatability in gear production.

Patterns for modular cutters

dp - pitch diameter,

P - nominal pitch (measured from the arc)

Z - number of teeth of the work wheel

m - nominal modulus

P.A.- adhesion angle 20 degrees

dp=z*m

m=P*PI
