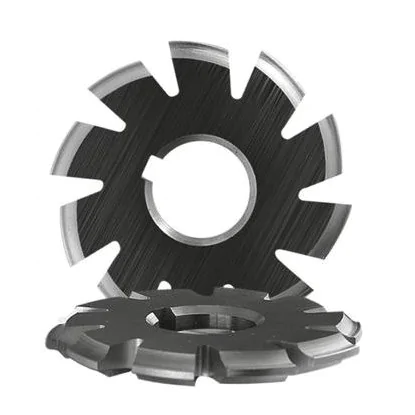

M2.5 NR2 HSS modular disc cutter

Fenes Narzędzia Fenes Narzędzia
0797
Module: 2,516 sizes of this cutter
€35.61 tax inc.

Net price: €28.95

Instant Shipping
W magazynie: 2 pcs.
W magazynie: 2 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data
Diameter D 22 mm
Diameter d 63 mm
Number of teeth to be machined 14-16

Modular disc milling cutter M2,5 NR2 HSS

Modulardisc cutterM2,5 NR2 HSS is a high-performance cutting tool designed for precise cutting of the external serrations of gears with a module of 2,5. The number NR2 indicates the use of the cutter in machining wheels with a slightly higher number of teeth than the NR1 version, while maintaining high precision and repeatability of cutting.

Made of durable HSS, the cutter is characterized by high wear resistance and long life even in demanding working conditions. The staggered blades and 20° buttress angle allow for a smooth cut surface and faithful reproduction of the involute outline. The tool is NFMa-compliant, which guarantees easy integration into modular cutter sets.

  • Number NR2 - dedicated to gears with a moderate number of teeth.
  • HSS high-speed steel - provides durability and wear resistance.
  • Staggered blades - reduces vibration and improves cutting quality.
  • Angle of appendage 20° - complies with construction standards for the involute outline.
  • NFMa standard - guarantees compatibility with modular tool sets.

The M2.5 NR2 HSS modular disc cutter is a reliable tool for professionals who expect precision, durability and high quality workmanship in the gear manufacturing process.

Patterns for modular milling cutters

dp - pitch diameter,

P - nominal pitch (measured from the arc)

Z - number of teeth of the work wheel

m - nominal modulus

P.A.- adhesion angle 20 degrees

dp=z*m

m=P*PI
