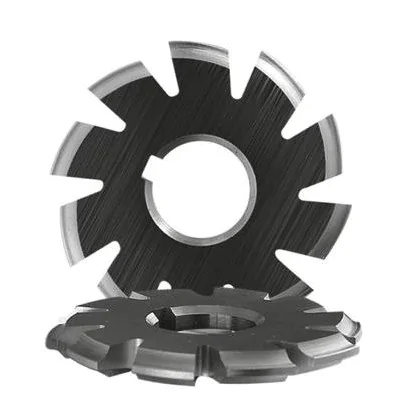

Modular disc cutter M1.75 NR4 HSS

Fenes Narzędzia Fenes Narzędzia
0789
Module: 1,7517 sizes of this cutter
€32.37 tax inc.

Net price: €26.32

Instant Shipping
W magazynie: 2 pcs.
W magazynie: 2 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical Data
Diameter D 22 mm
Diameter d 56 mm
Number of teeth to be machined 21-25

Modular disc cutter M1,75 NR4 HSS

The M1.75 NR4 HSS modular disc milling cutter is a precision cutting tool designed for cutting external serrations in gears with a module of 1.75 and a medium tooth count range. As the fourth-position tool in the NFMa set, it stands out for its optimized geometry that allows machining with high accuracy and repeatability.

The cutter is made of HSS high-speed steel, which ensures wear resistance and long life even in intensive working conditions. Staggered blades and a 20° buttress angle are responsible for a smooth cut surface and stability of the milling process. The tool guarantees compliance with the requirements of the NFMa standard, making it an excellent choice for both batch and unit production.

  • Ideal for the medium toothing range - the NR4 number ensures a precise match to the specified number of teeth.
  • HSS steel - durable material resistant to wear and overheating.
  • Staggered blades - improve surface quality and reduce vibration during machining.
  • NFMa-compatible - allows the cutter to be used in modular tool sets.
  • 20° buttress angle - complies with the industry standard for involute teeth.

The M1.75 NR4 HSS modular disc milling cutter is an excellent choice for professionals who expect the highest quality workmanship and efficiency in gear machining.

Patterns for modular milling cutters

dp - pitch diameter,

P - nominal pitch (measured from the arc)

Z - number of teeth of the work wheel

m - nominal modulus

P.A.- adhesion angle 20 degrees

dp=z*m

m=P*PI
