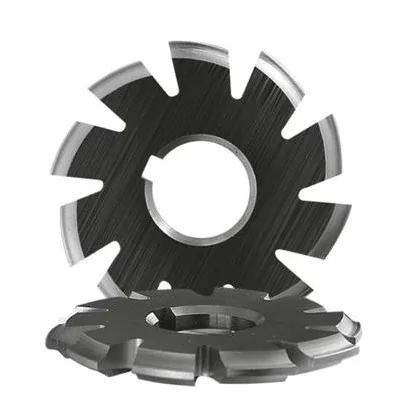

Modular disc cutter M3.5 NR2 HSS

Fenes Narzędzia Fenes Narzędzia
0791
Module: 3,516 sizes of this cutter
€25.25 tax inc.

Net price: €20.53

Instant Shipping
W magazynie: 10 pcs.
W magazynie: 10 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data
Diameter D 27 mm
Diameter d 80 mm
Number of teeth to be machined 14-16

Modular disc milling cutter M3,5 NR2 HSS

The M3.5 NR2 HSS modular disc cutter is a high-performance tool designed for precision cutting of the outer serrations of gears with a module of 3.5. The number NR2 indicates that the cutter is designed for machining gears with a small but higher number of teeth than NR1, ensuring excellent reproduction of the involute profile and high quality of the cut surface.

Made of durable HSS, the cutter is characterized by high wear resistance and long service life, which translates into stability and reliability of the machining process. The staggered blades and 20° buttress angle guarantee smooth operation of the tool, reducing vibration and minimizing the risk of micro-breaks. The tool complies with the NFMa standard, which facilitates its integration into modular sets.

  • Number NR2 - dedicated to gears with a small number of teeth in the 3.5 module.
  • HSS high-speed steel - provides durability and wear resistance.
  • Staggered blades - improve cutting quality and stabilize the machining process.
  • Angle of appendage 20° - complies with the construction standards of the involute profile.
  • NFMa standard - allows easy integration of tools into modular cutter sets.

The M3.5 NR2 HSS modular disc cutter is a reliable tool for professionals who expect precision and high quality in gear production.

Patterns for modular milling cutters

dp - pitch diameter,

P - nominal pitch (measured from the arc)

Z - number of teeth of the work wheel

m - nominal modulus

P.A.- adhesion angle 20 degrees

dp=z*m

m=P*PI
