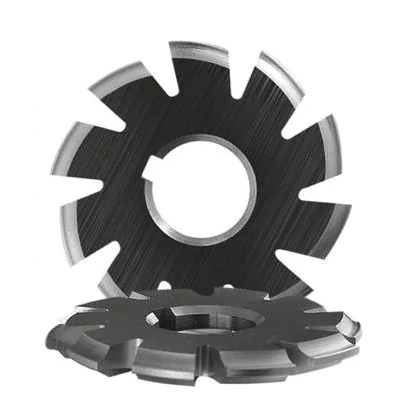

M3.5 NR7 HSS modular disc cutter

Fenes Narzędzia Fenes Narzędzia
0794
Module: 3,513 sizes of this cutter
€25.25 tax inc.

Net price: €20.53

Instant Shipping
W magazynie: 8 pcs.
W magazynie: 8 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data
Diameter D 27 mm
Diameter d 80 mm
Number of teeth to be machined 26-34

Modular circular milling cutter M3,5 NR7 HSS

Modulardisc cutter M3,5 NR7 HSS is a high-quality tool designed for precise cutting of the external serrations of gears with a module of 3,5. The designation NR7 indicates that the cutter is dedicated to machining gears with a large number of teeth, providing excellent reproduction of the involute profile and stability of the cutting process.

Made of high-grade HSS, the cutter is characterized by wear resistance and long service life, which enables efficient and repeatable operation even in demanding industrial conditions. The staggered blades and 20° buttress angle ensure smooth operation of the tool, minimizing vibration and micro-cracking, and improving the quality of the cut surface. The product complies with the NFMa standard, making it easy to integrate with other modular cutters.

  • Number NR7 - designed for gears with a large number of teeth in module 3.5.
  • HSS high-speed steel - provides durability and high wear resistance.
  • Staggered blades - improve cutting quality and stabilize the machining process.
  • Angle of appendage 20° - complies with the construction standards for the involute profile.
  • NFMa standard - allows easy integration into modular cutter sets.

The M3.5 NR7 HSS modular disc cutter is a reliable tool for professionals who expect high quality and precision in gear machining.

Patterns for modular cutters

dp - pitch diameter,

P - nominal pitch (measured from the arc)

Z - number of teeth of the work wheel

m - nominal modulus

P.A.- adhesion angle 20 degrees

dp=z*m

m=P*PI
