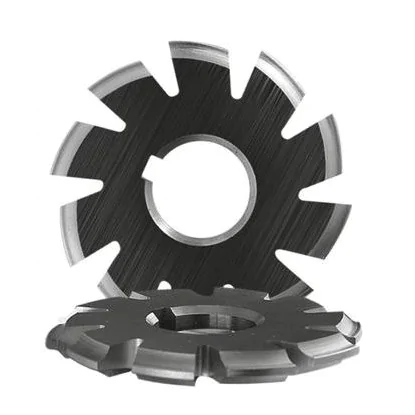

Modular disc cutter M2.5 NR1 HSS

Fenes Narzędzia Fenes Narzędzia
0000007945
Module: 2,516 sizes of this cutter
€35.61 tax inc.

Net price: €28.95

Instant Shipping
W magazynie: 1 pcs.
W magazynie: 1 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data
Diameter D 22 mm
Diameter d 63 mm
Number of teeth to be machined 12-13

Modular disc milling cutter M2,5 NR1 HSS

The M2.5 NR1 HSS modular circ ularmilling cutter is a specialized tool designed for precision cutting of the outer serrations of gears with a module of 2.5 and a small number of teeth. The tool is the first item in NFMa's eight-piece set of cutters, dedicated to machining wheels with the smallest number of teeth in a given module.

Made of high-grade HSS, the cutter provides high durability and wear resistance, which translates into long life and stable cutting parameters. The 20° buttress angle and staggered blades enable precise reproduction of the involute profile, ensuring high surface quality and process repeatability. The tool is ideal for gear manufacturing applications with high quality requirements.

  • Item NR1 - dedicated to gears with the smallest number of teeth in the 2.5 module.
  • HSS high-speed steel - resistant to abrasion and mechanical wear.
  • Staggered blades - improve cutting quality and stabilize the machining process.
  • Adjacencyangle of 20° - ensures compliance with evolute outline standards.
  • NFMa standard - allows use in modular tool sets.

The M2,5 NR1 HSS modular disc cutter is a reliable tool for workshops and gear manufacturers who value precision and durability.

Patterns for modular cutters

dp - pitch diameter,

P - nominal pitch (measured from the arc)

Z - number of teeth of the work wheel

m - nominal modulus

P.A.- adhesion angle 20 degrees

dp=z*m

m=P*PI
