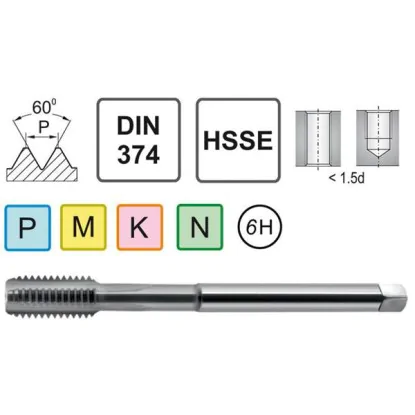

Machine tap M27x1 DIN 374 A HSSE Fra
FRA FRA
0000008186
€51.79 tax inc.
Net price: €42.11
Instant Shipping
W magazynie: 8 pcs.
Description
Material HSSE
Thread size M27x1
ChamferA (6÷8) threads
Standard DIN 374
Technical data for the M27x1 machine tap
| Technical Data | |
|---|---|
| Nominal Diameter d1 | M27x1 |
| Thread Pitch P | 1 mm |
| Tap Drill Diameter | 26.0 mm |
| Chamfer | A (6÷8) |
| Thread tolerance | 6H |
Universal M27x1 machine tap – HSSE DIN 374
The M27x1 machine tap is a professional tool for producing internal threads in both through holes and blind holes. Made of HSSE high-speed steel with 5% cobalt and a hardness of 65-67 HRC, it provides optimal cutting edge life and stable operation at temperatures up to 650°C. Tolerance 6H according to DIN 374.
Key advantages of the M27x1 machine tap
- HSSE material – hardness of 65-67 HRC and heat resistance up to 650°C
- Form A chamfer (6÷8 threads) – optimal for both through holes and blind holes
- Tolerance 6H – standard accuracy grade for bolted joints
- Compliance with DIN 374 – verified dimensional quality
The M27x1 machine tap is used in toolrooms and maintenance departments. The recommended tap drill diameter is 26.0 mm.
Cutting data for the M27x1 machine tap
| Material | Cutting speed Vc [m/min] | Spindle speed n [rpm] | Feed f [mm/min] |
|---|---|---|---|
| PSteel | 5-20 | 58-235 | 58-235 |
| MStainless steel | 5-10 | 58-117 | 58-117 |
| KCast iron | 5-15 | 58-176 | 58-176 |
| NAluminum | 10-25 | 117-294 | 117-294 |
Thread preparation M27x1 in a through hole or blind hole
1 Spot drilling
NC spotting drill 90°
2 Drilling
Ø 26.0 mm
3 Tapping
M27x1
✓ Done!
Tolerance 6H
Standard: DIN 374 | Chamfer: A (straight) | Application: through holes and blind holes
Tolerance 6H — metric thread tolerance classes
| Class | Accuracy | Application | Status |
|---|---|---|---|
| 4H / 4g | High | Precision connections, hydraulics | — |
| 6H / 6g | Standard | Machine building, general-purpose | SELECTED |
| 7H / 8g | Low | Large clearance, easy assembly | — |
6H = internal thread (nut, hole) | 6g = external thread (screw)
