Hand Tap M5 HSS Fanar - 3 pieces
search
  • Hand Tap M5 HSS Fanar - 3 pieces
  • Hand Tap M5 HSS Fanar - 3 pieces - nr. 1
Fanar Narzędzia

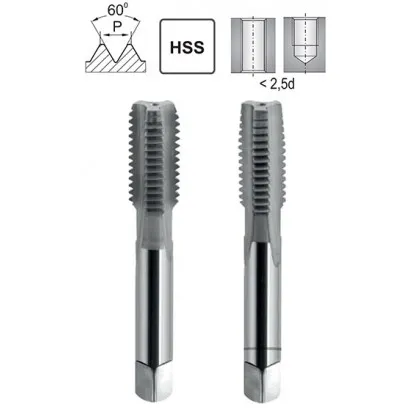

Hand Tap M5 DIN 352/2 6H HSS Fanar

Fanar Narzędzia Fanar Narzędzia
49558
Thread size: M57 sizes of this tap
€7.61 tax inc.

Net price: €6.18

Brak w magazynie
Brak w magazynie

Call and order: (44) 755-04-05

Description

Material HSS
Thread size M5
Number of pieces2 pcs
Tolerance 6H ISO2

Technical data for the M5 hand tap

Technical data
Thread Diameter d1 M5
Thread Pitch P 0.8 mm
Overall Length l1 50 mm
Flute Length l2 14 mm
Shank Diameter d2 6 mm
Square Drive Width Across Flats a 4.9 mm
Tap Drill Hole 4.2 mm

Roughing tap and finishing tap – how much material each removes

Division of work in the 1–2 set

The M5 x0.8 thread is cut into the wall of a hole with a diameter of 4.2 mm. The thread groove extends 0.4 mm into the wall. A single tap would have to cut the entire groove at once – by hand, this creates high resistance and a risk of breakage. The set divides this work into two passes.

Tapping an M5 hole: 4.2 mm hole, tap No. 1 and No. 2 shown in a plate cross section
Tapping an M5 hole: 4.2 mm hole, tap No. 1 and No. 2 shown in a plate cross section

The drawing shows the entire set in operation. Both taps have the same shank and the same length. They differ in their chamfer, the tapered tip: No. 1 has a chamfer spanning 8 threads, while No. 2 spans only 2 threads. The detail windows at the hole wall show how the thread groove deepens after each tap.

TapChamferChamfer angleMaterial removedHow it works in the hole
No. 1 – roughing taplong, 8 threads5°the main portion of the grooveenters smoothly and establishes thread alignment
No. 2 – finishing tapshort, 2 threads20°the remainder, to the full profilefollows the cut threads and produces the full 6H profile

How to distinguish the taps in the set

The chamfer on No. 1 is 4 times as long as the chamfer on No. 2 — the difference is immediately visible when you place them side by side. No. 1 has an incomplete thread profile; only No. 2 has the full profile. The number is also indicated on the shank: No. 1 has one ring, No. 2 has none. Keep the set together and always start with the roughing tap.

How to tap an M5 hole – sequence 1, 2

Hand tapping step by step

Thread M5 x0.8 in four steps

ØDrilling

Drill bit 4.2 mm

1Roughing tap

Chamfer 8 threads

2Finishing tap

Chamfer 2 threads

✓Finished thread

Tolerance 6H

Turning sequence: half a turn clockwise, a quarter turn counterclockwise | Between taps: remove chips from the hole

Start with the hole. The drill diameter is easy to calculate: thread diameter 5 mm minus pitch 0.8 mm gives 4.2 mm. An undersized hole is a common cause of a tap twisting off in the workpiece.

Through hole or blind hole – how deep to drill

The set taps both types of holes. In a through hole, the thread extends through the full material thickness. In a blind hole, cut the thread to 12.5 mm, or 2.5 times the thread diameter (2.5 x 5 mm, shown as 2.5D in the drawing). Drill the hole deeper than the thread. The finishing tap has a chamfer spanning 2 threads, so approx. 2 incomplete threads remain near the bottom. The extra depth below the thread accommodates them along with the chips.

M5 thread in a through and blind hole – cross-sections with clearance for chips and the chamfer

No. 1 – the roughing tap establishes thread alignment

Fit the roughing tap in the tap wrench and position it perpendicular to the surface. Check the angle from two sides, for example with a square. Turn half a turn clockwise, then a quarter turn counterclockwise. Reversing breaks the chip into short pieces – a slight crunch is normal. The first threads determine whether the thread will be straight.

No. 2 – the finishing tap produces the full profile

Unscrew the roughing tap and remove the chips from the hole. Screw the finishing tap into the cut threads by hand – it should engage them naturally. Continue turning with the same rhythm used for the roughing tap. The finishing tap removes the remaining material and cuts the groove to the full profile in tolerance class 6H. When it screws in smoothly all the way, the thread is complete – check it with an M5 screw.

M5 HSS hand tap – 2-piece set for fast tapping

The M5 HSS hand tap set is a professional 2-piece set for precision cutting of internal threads with a diameter of 5 mm. The set includes a roughing tap and a finishing tap, allowing fast and efficient thread cutting in two stages – an ideal choice for workshops and assembly work.

Main benefits of the M5 HSS hand tap set

  • 2-piece set – the roughing tap and finishing tap provide faster tapping than a traditional 3-piece set while maintaining high quality
  • High-speed steel HSS 64 HRC – a proven material guaranteeing durability and effective cutting of steels with a tensile strength of up to 800 MPa
  • Compliance with DIN 352 – an international standard ensuring dimensional accuracy and consistent tool quality
  • Thread tolerance 6H – a standard accuracy grade for proper fit with tolerance class 6g screws
  • Universal application – general engineering, model making, electronics, equipment repairs, and assembly work

M5 hand taps in a 2-piece set are a practical solution for professionals who value time and efficiency. The M5 tap set is suitable for everyday workshop and repair work. Order the set and complete tapping tasks faster without compromising quality.

Tolerance 6H — metric thread tolerance classes

ClassAccuracyApplicationStatus
4H / 4g High Precision connections, hydraulics —
6H / 6g Standard Machine building, general-purpose SELECTED
7H / 8g Low Large clearance, easy assembly —

6H = internal thread (nut, hole) | 6g = external thread (screw)

Frequently asked questions

An M5 thread with a pitch of 0.8 mm requires a hole with a diameter of 4.2 mm. Accurate sizing ensures a full thread profile and protects the tool from damage.

The 2-piece set does not include an intermediate tap, which reduces working time. It is suitable for soft and medium-hard materials, while the 3-piece version is suitable for harder steels.

The HSS tap is suitable for structural steels up to 800 MPa, aluminum, brass, bronze, and cast iron. An HSSE tap is better for stainless steels.

Product accessories

M5 HSS DIN 22 568

Reference: 0825 In stock > 10 items

€3.95

€4.86 brutto

Tap wrench No. 3

Reference: 085009 In stock > 10 items

€13.16

€16.18 brutto

Reviews

No customer reviews for the moment.

Add a review about the product

Hand Tap M5 DIN 352/2 6H HSS Fanar

Hand Tap M5 DIN 352/2 6H HSS Fanar

Shipping

All orders are delivered by courier company GLS. For orders exceeding 369 PLN gross shipping is FREE

Courier GLS Przelew24 / Prepayment 14,76 zł gross Delivery time 1 working day
Courier GLS Cash on delivery 17,26 zł gross Lead time 1 working day
