Description
DIAMETER Ø25 mm
LENGTH 250 mm
INSERT TNMG 1604rr
ANGLE κr 60°
Technical specifications of the S25s TT-NR 16 boring bar
| Technical data | |
|---|---|
| ISO designation | S25s TT-NR 16 |
| Shank diameter (d) | Ø25 mm |
| Effective height (h) | 23 mm |
| Overall length (L) | 250 mm |
| Functional overhang (f) | 18 mm |
| Min. bore diameter (D_min) | Ø34 mm |
| Entering angle (κr) | 60° |
| Clearance angle | 0° (negative) |
| Clamping system | ISO — top and through-hole clamping (T) |
| Insert type | TNMG 1604rr |
| Cutting direction | R — right-hand (L version available) |
| Shank material | Steel (S) |
| Manufacturer | Smoxh |

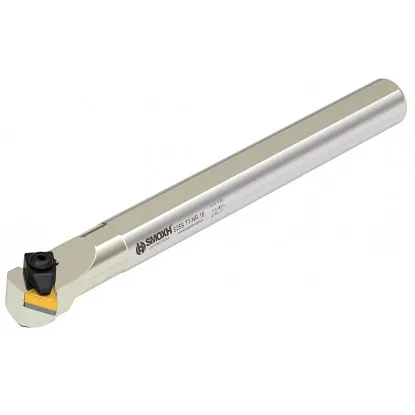

S25s TT-NR 16 boring bar – for internal turning of bores
Internal turning tool for machining bores from Ø34 mm
Boring bar S25s TT-NR 16 is an indexable boring bar designed for longitudinal turning and roughing and medium machining of bores with diameters from 34 mm. The round steel shank with a diameter of Ø25 mm and a length of 250 mm ensures stable cutting even at greater tool overhang. The geometry with an entering angle of 60° allows longitudinal turning with good access to the machined surface.
In the top and hole clamping system (T), the clamp secures the TNMG 1604rr insert from above and through its hole. The negative geometry of the 60° triangular insert with 6 cutting edges is suitable for roughing and medium machining, providing high cutting edge strength and cost efficiency thanks to its double-sided design. The boring bar is compatible with TNMG 16 inserts in various carbide grades — select the grade to match the workpiece material.
Decoding the TT-NR designation of the S25s TT-NR 16 boring bar
What the individual letters in the ISO designation mean
Decoding the designation TT-NR
T
CLAMPING
Top and through-hole clamping (T)
The clamp secures the insert from above and through its hole.
T
INSERT SHAPE
60° triangle 60°
TNMG insert — negative, double-sided, 6 edges (3 per side)
N
ENTERING ANGLE
κr = 60°
Boring bar with a triangular insert set at 60°.
N
CLEARANCE ANGLE
α = 0° (neg.)
Negative geometry — double-sided inserts, edges on both sides
R
DIRECTION
Right-hand (R)
Feed to the left — from the tailstock toward the spindle
Shank: Ø25 mm (S25S, steel) · Insert: TNMG 1604rr
Typical applications of the S25s TT-NR 16 boring bar
Cutting operations:
| ▸ | Longitudinal boring — enlarging and finishing cylindrical bores from Ø34 mm |
| ▸ | Roughing and medium machining of bores — negative TNMG geometry provides a strong cutting edge; for finishing, select an insert with a finishing chip breaker |
| ▸ | Internal taper turning — bearing seats, internal chamfers, Morse tapers |
| ▸ | CNC production runs — repeatable cutting edge positioning and quick insert replacement in the holder |
Included
Package contents for S25s TT-NR 16
Package contents:
| ✓ | Boring bar body S25s TT-NR 16 | 1 pcs |
| ✓ | Top clamp with screw | 1 pcs |
| ✓ | Hex key for insert replacement | 1 pcs |
| ✗ | TNMG 1604rr cutting insert (sold separately) | — |
Compatible TNMG 1604rr insert
TNMG 1604rr
The cutting insert is not included in the set — must be purchased separately. TNMG insert. Negative geometry means that the insert is double-sided and has 6 cutting edges, providing a stronger cutting edge and twice as many edges as a single-sided insert.
Select the insert grade to match the workpiece material: P (structural steels), M (stainless steel), K (cast iron), N (aluminum). You can find compatible inserts in the section "Related products" below.
Insert installation and replacement for the S25s TT-NR 16 boring bar
Instructions for top and through-hole clamping (T)
Insert replacement procedure step by step
1 Loosen the clamp
Loosen the clamp screw 2-3 turns
2 Clean the insert seat
Remove chips and debris
3 Install the insert
Position in the seat under the clamp
4 Tighten the clamp
Torque 3.5–5.0 Nm
Important: Do not exceed the recommended tightening torque — this may damage the thread in the seat or crack the insert.
Checks before starting work:
| ▸ | Tool overhang — do not exceed 4×d (100 mm) without support; use vibration damping for greater overhang |
| ▸ | Cutting edge height — set the cutting edge at spindle centerline height |
| ▸ | Insert seat condition — check that the contact surface is not damaged or worn |
| ▸ | Secure clamping — the insert must have no play in the seat |
| ▸ | Indexing — when an edge wears out, rotate the insert to a fresh edge (6 edges in total) |
Note: Use internal coolant (through the spindle) for boring whenever possible. When machining without coolant, reduce cutting parameters by 20–30%. Long tool overhang promotes vibration — if vibration occurs, reduce the depth of cut and increase the feed.
Frequently asked questions — S25s TT-NR 16
The minimum bore diameter is Ø34 mm. In smaller bores, the tool head interferes with the machined wall, preventing proper cutting.
For a steel shank of Ø25 mm, the recommended maximum overhang without damping is 4×d, or 100 mm. Above this value, vibration may occur — reduce the depth of cut or use a vibration-damped boring bar.
The TNMG insert has negative geometry (clearance angle 0°), which means it is double-sided with 6 cutting edges. When one edge wears out, rotate or flip the insert to use the next edge — this significantly reduces tooling cost per part.
