Tap Trapezoidal Tr 20X4 for DIN 103 steel - nr. 1
search
  • Tap Trapezoidal Tr 20X4 for DIN 103 steel - nr. 1
  • Tap Trapezoidal Tr 20X4 for DIN 103 steel - nr. 2
  • Tap Trapezoidal Tr 20X4 for DIN 103 steel - nr. 3

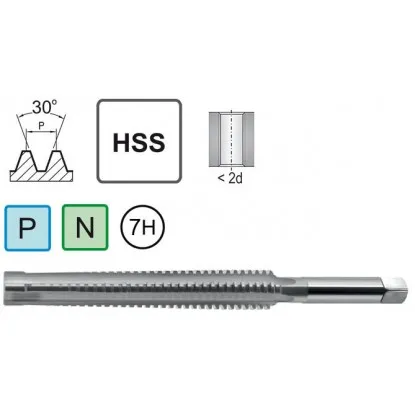

Tap Trapezoidal Tr 20X4 HSS DIN 103 7H Varel

Varel Varel
0000006818
€129.47 tax inc.

Net price: €105.26

Instant Shipping
In stock > 10 pcs.
In stock > 10 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data of machine threader Tr 20x4

Technical data
Thread diameter d1 Tr 20x4mm
Thread pitch P 4 mm
Total length l1 170 mm
Working length l2 105 mm
Shank diameter d2 14 mm
Length of shank square a 11 mm
Threaded hole diameter 16 mm
Gwintownik trapezowy rysunek

Tap Trapezoidal Tr 20x4 HSS DIN 103 7H is a precision cutting tool for cutting trapezoidal threads with a pitch of 4 mm, in accordance with DIN 103. Made of high-quality HSS high-speed steel, it guarantees long life, abrasion resistance and stable operation under high thermal and mechanical loads.

The Tr 20x4 trapezoidal thread is a solution commonly used in mechanical systems that require accurate transmission of axial forces, m.in. in pull bolts, screw actuators and positioning mechanisms. The 4mm pitch provides precise, linear travel while maintaining adequate load carrying capacity. The 7H tolerance allows exact fits in serial production processes.

Tap Trapezoidal Tr 20x4 HSS DIN 103 7H is used on both CNC machine tools and conventional lathes. The tool is suitable for machining structural steels, bronze, aluminum alloys and non-ferrous metals.

  • Dimensional stability - HSS provides durability and wear resistance in industrial conditions.
  • Threading precision - conforms to DIN 103 and tolerance class 7H.
  • Strokeof 4 mm - ideal for screw drives and linear motion systems.
  • Versatility - tool compatible with CNC and conventional machines.
