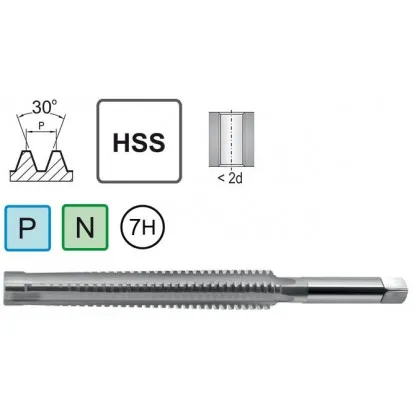

Tap Trapezoidal Tr 22X5 LH HSS DIN 103 7H Varel
0000007351
€173.17 tax inc.
Net price: €140.79
Description
Technical data of machine threader Tr 22x5 left
| Technical data | |
|---|---|
| Thread diameter d1 | Tr 22x5 mm |
| Thread pitch P | 5 mm |
| Total length l1 | 280 mm |
| Working length l2 | 140 mm |
| Shank diameter d2 | 17 mm |
| Length of shank square a | 13 mm |
| Threaded hole diameter | 17 mm |
Tap Trapezoidal Tr 22x5 LH HSS DIN 103 7H is a specialized tool designed for precision cutting of left-hand trapezoidal threads with a pitch of 5 mm, in accordance with DIN 103. Made of wear-resistant HSS high-speed steel, it guarantees long service life, dimensional stability and high thread surface quality even under heavy use.
The left-hand thread Tr 22x5 LH is used in drive mechanisms, lifting systems, actuators and applications where force transmission in the opposite direction to the standard is required. The 5mm pitch allows for fast linear travel while maintaining high accuracy. The 7H tolerance ensures proper fit and dimensional repeatability in mass production.
Tap Trapezoidal Tr 22x5 LH HSS DIN 103 7H is perfect for conventional lathes and CNC machines. The tool allows efficient machining of materials such as structural steel, aluminum, bronze and other non-ferrous metals.
- Left trapezoidal thread - for applications requiring reverse force transmission.
- HSS steel - high wear resistance and tool life.
- 5 mm pitch - efficient linear travel while maintaining thread accuracy.
- Precision manufacturing - compliance with DIN 103 and 7H tolerance allows for a reliable fit.
