Description
Technical data of burr fi 18 long Morse burr
- working diameter D - fi 18,00 mm,
- length of working part l - 63,00 mm,
- total length L - 148,00 mm,
- morse taper no. - MT2,
- number of teeth Z - 4,
Cutting parameters of long finger milling cutter fi 18 mm
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 15 | 0,035 | 265 | 37 |
| M | Stainless steels | 10 | 0,035 | 177 | 25 |
| K | Cast iron | 10 | 0,055 | 177 | 39 |
| N | Aluminum | 30 | 0,035 | 531 | 74 |
You may find useful
Cutting parameters calculator

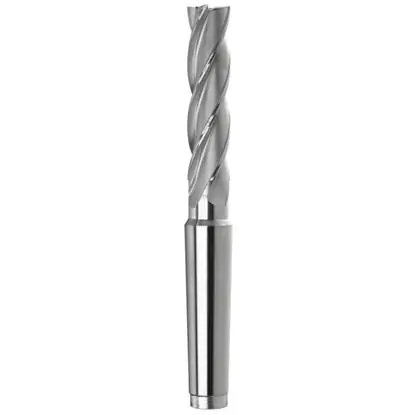

Morse taper 18 long shank cutter
Morse taper 18 long burr. It is a milling cutter with a cylindrical-face blade designed for finishing, semi-finishing and roughing. It is commonly referred to as a finger milling cutter, and is dedicated to both individual customers and large industrial plants. It is suitable for conventional and CNC computer-controlled machine tools. It is a milling cutter characterized by increased resistance to harsh cutting conditions and increased resistance to fracture, cracking, chipping and other damage. This makes it possible not only to increase machining efficiency, but also to improve working comfort. Morse 18 long taper burrs NFPc offered to you in our offer have 18x63 dimensions, torsion blades with an angle of 30 degrees, special grooves for chip removal from the tool. They are suitable for conventional and CNC numerical machine tools.
