Description
Technical data of burr fi 22 long Morse burr
- working diameter D - fi 22,00 mm,
- length of the working part l - 75,00 mm,
- total length L - 160,00 mm,
- morse taper no. - MT2,
- number of teeth Z - 6.
Cutting parameters of long finger milling cutter fi 22 mm
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 15 | 0,040 | 217 | 52 |
| M | Stainless steels | 10 | 0,035 | 145 | 30 |
| K | Cast iron | 10 | 0,040-0,080 | 145 | 35 |
| N | Aluminum | 30 | 0,020-0,035 | 434 | 52 |
You may find useful
Cutting parameters calculator

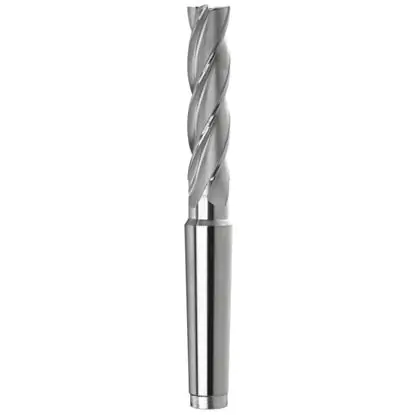

Morse taper 22 long shank cutter
Morse taper 22 long burr. High-quality burr, commonly known as finger milling cutter, with dimensions of 22x75. It is made in accordance with the dimensional standard NFPc, DIN 845 BLN. It has cylindrical face blades, Morse taper shank and a special threaded hole for easy mounting to the spindle of the milling machine. In addition, the cutter has special chip grooves for draining chips to the outside of the tool. The 22 long Morse taper burrs in our offer are made of special HSS (High Speed Steel). This is a tool steel characterized by increased hardness and durability. It allows machining of hard and hard-to-machine materials of the P1.2 - P1.3. class It is suitable for finishing, medium and rough machining. It can be used for conventional and CNC numerical control machine tools.
