Description
Technical data of burr fi 24 long Morse burr
- working diameter D - 24,00 mm,
- length of the working part l - 90,00 mm,
- total length L - 192,00 mm,
- morse taper no. - MT3,
- number of teeth Z - 6.
Cutting parameters of long burr fi 24 mm
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 15 | 0,040 | 199 | 48 |
| M | Stainless steels | 10 | 0,035 | 133 | 28 |
| K | Cast iron | 10 | 0,040-0,080 | 133 | 32 |
| N | Aluminum | 30 | 0,020-0,035 | 398 | 48 |
You may find useful
Cutting parameters calculator

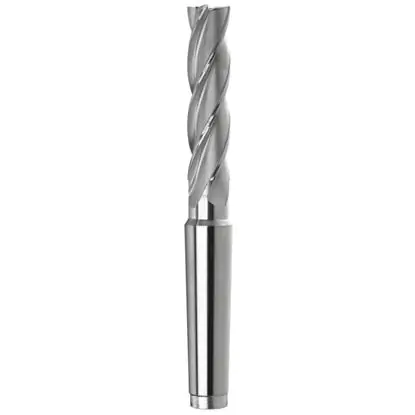

Morse taper 24 long shank cutter
Morse taper 24 long burr. It is designed to perform professional finishing, medium precision and roughing, implemented on conventional and CNC computer-controlled machine tools. NFPc burrs have 30-degree torsion blades, with special chip grooves between them for chip evacuation during machining. They have a Morse taper shank and a special threaded hole, thanks to which the tools are mounted with a draw screw to the spindle of the milling machine. The 24 long Morse taper burrs we offer. They are made entirely of modern HSS high-speed steel. Thanks to its properties, they are resistant to breakage, chipping, cracking and other mechanical damage. This allows for higher working comfort and longer tool life.
