Technical data of burr fi 26 long Morse burr
- working diameter D - fi 26,00 mm,
- length of the working part l - 90,00 mm,
- total length L - 192,00 mm,
- morse taper no. - MT3,
- number of teeth Z - 6.
Cutting parameters of long burr fi 26 mm
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 15 | 0,040 | 184 | 44 |
| M | Stainless steels | 10 | 0,035 | 122 | 26 |
| K | Cast iron | 10 | 0,040-0,080 | 122 | 29 |
| N | Aluminum | 30 | 0,020-0,035 | 367 | 44 |
You may find useful
Cutting parameters calculator

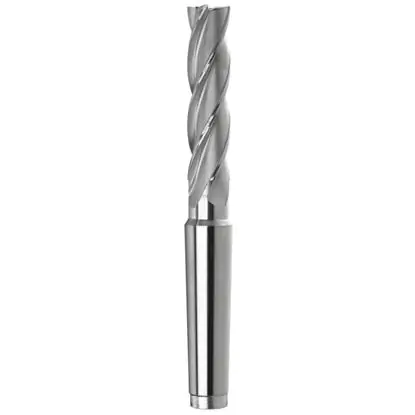

Morse taper 26 long shank cutter
Morse taper 26 long shank milling cutter. It features 30-degree torsional cylindrical blades, a Morse taper shank and a tapped hole designed for easy mounting of the cutter with a set screw to the spindle of a milling machine. The cutter is made in accordance with DIN 845 BLN. It is designed for finishing, medium fine and coarse machining. The 26 long Morse taper burrs offered in our store are made of specialized HSS high-speed steel. This is a steel with exceptional technical properties. HSS milling cutters are characterized by increased resistance to very heavy cutting conditions, including high temperatures generated during high-speed machining. At the same time, they are resistant to any mechanical damage (fractures, cracks, chipping). Their advantage is high ductility and edge stability.
