Description

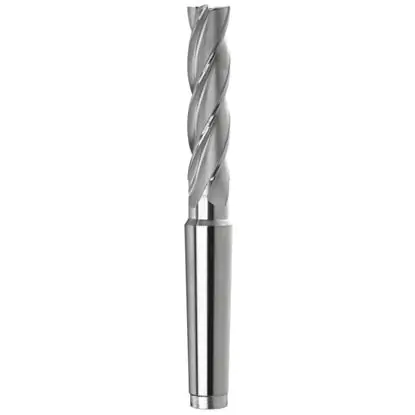

Technical data of burr fi 16 long Morse burr
- working diameter D - fi 16 mm,
- length of the working part l - 63 mm,
- total length L - 148,00 mm,
- morse taper no. - MT2,
- number of teeth Z - 4.
Cutting parameters of long finger milling cutter fi 16 mm
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 15 | 0,035 | 299 | 42 |
| M | Stainless steels | 10 | 0,035 | 199 | 28 |
| K | Cast iron | 10 | 0,055 | 199 | 44 |
| N | Aluminum | 30 | 0,035 | 597 | 84 |
You may find useful
Cutting parameters calculator
Morse taper 16 long shank cutter
Morse16 long taper sh ankmilling cutter NFPc DIN-845, commonly known as finger milling cutter. It is a milling cutter with high cutting properties, made in accordance with the dimensional standard DIN 845 BLN, with dimensions of 16x63. It has a Morse taper shank, cylindrical-shank blades, torsion blades with an angle of 30 degrees and, respectively, chip grooves, the purpose of which is to drain chips outside the tool. In our store, we offer you finger milling cutters made entirely of modern HSS high-speed steel. Thanks to their high technical properties, Morse long 16 taper burrs are very hard and durable, as well as resistant to any mechanical damage. They can be used for finishing, semi-finishing and roughing cutting. They are suitable for conventional and CNC computer-controlled machine tools.
