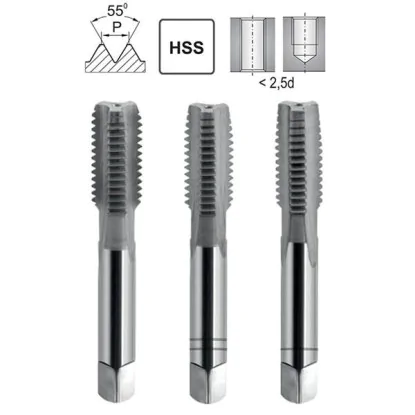

BSW 2-4 1/2 DIN 352/3 HSS Hand Taps

FWP FWP
0995
Thread size (inch): 216 sizes of this tap
€71.21 tax inc.

Net price: €57.89

Instant Shipping
W magazynie: 10-100 szt.
W magazynie: 10-100 szt.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data for the 2-4 1/2 BSW Whitworth hand tap

Technical data
Nominal diameter d1 BSW 2-4 1/2
Thread diameter 50.8 mm / 2 in
Thread pitch P 4 1/2 threads per inch / 5.644 mm
Overall length l1 180 mm
Flute length l2 65 mm
Shank diameter d2 40 mm
Square drive size a 32 mm
Thread angle 55°
Thread standard BS 84 (Whitworth)
Tap drill hole 44.5 mm
Drawing of the BSW 2-4 1/2 hand tap with dimensions d1, l1, l2, d2, a, and a 55° thread profile

Roughing, intermediate, and finishing taps – how much material each removes

Division of work in the 1–2–3 set

The BSW 2-4 1/2 thread is cut into the wall of a hole with a diameter of 44.5 mm. The thread groove extends 3.15 mm into the wall. A single tap would have to cut the entire groove at once, requiring high manual torque and risking breakage. The set divides this work into three layers.

Tapping a BSW 2-4 1/2 hole: 44.5 mm hole, taps No. 1, 2, and 3 shown in a plate cross section
Tapping a BSW 2-4 1/2 hole: 44.5 mm hole, taps No. 1, 2, and 3 shown in a plate cross section

The drawing shows the entire set in operation. All three taps have the same shank and the same length. They differ in chamfer length: No. 1 has a taper spanning 7–10 threads, while No. 3 spans only 1–2 threads. The detail views at the hole wall show how the thread groove deepens after each tap.

TapChamferMaterial removedHow it works in the hole
No. 1 – roughing taplong, 7–10 threadsapprox. 60%enters smoothly and establishes thread alignment
No. 2 – intermediatemedium, 3–5 threadsapprox. 30%screws into the previously cut threads and starts cutting only deeper in the hole
No. 3 – finishing tapshort, 1–2 threadsapprox. 10% + sizingcuts smoothly and produces the full thread profile

How to identify the tap numbers in the set

The chamfer is the tapered end of the tap. No. 1 has the longest chamfer and No. 3 the shortest – the difference is immediately visible when they are placed side by side. No. 1 and No. 2 have shallower thread profiles; only No. 3 has the full profile. The number can also be identified on the shank: No. 1 has one ring, No. 2 has two, and No. 3 has none. Keep the set together and always start with the roughing tap.

How to tap a BSW 2-4 1/2 hole – sequence 1, 2, 3

Hand tapping step by step

Thread BSW 2-4 1/2 in five steps

ØDrilling

Drill bit 44.5 mm

1Roughing tap

Removes approx. 60%

2Intermediate

Removes approx. 30%

3Finishing tap

Removes approx. 10%

✓Finished thread

Thread BSW 2-4 1/2

Turning sequence: half a turn clockwise, a quarter turn counterclockwise | Between taps: remove chips from the hole

Start with the hole. Inch thread pitch is specified in threads per inch, so first convert it to millimeters: an inch is 25.4 mm, and 25.4 : 4.5 threads = 5.644 mm. The BSW 2-4 1/2 thread diameter is 2 in, or 50.8 mm. The Whitworth profile has a thread height equal to 0.64 times the pitch, so the minor thread diameter is 50.8 mm minus 1.28 × 5.644 mm, or 43.57 mm. The 44.5 mm drill bit listed in the table is larger: the thread in the hole has approximately 87% of the full height, and the tap removes less material. An undersized hole is a common cause of taps twisting off in the workpiece.

Through hole or blind hole – how deep to drill

The set taps both types of holes. In a through hole, the thread extends through the full material thickness. In a blind hole, cut the thread to 76.2 mm, or 1.5 times the thread diameter (1.5 x 50.8 mm, shown as 1.5D in the drawing). Drill the hole deeper than the thread. The clearance below the thread accommodates chips and the finishing tap chamfer.

BSW 2-4 1/2 thread in a through hole and a blind hole – cross sections with allowance for chips and the chamfer

No. 1 – the roughing tap establishes thread alignment

Fit the roughing tap in the tap wrench and position it perpendicular to the surface. Check the angle from two sides, for example with a square. Turn half a turn clockwise, then a quarter turn counterclockwise. Reversing breaks the chip into short pieces – a slight crunch is normal. The first threads determine whether the thread will be straight.

No. 2 and No. 3 – deepening and full profile

Unscrew the roughing tap and remove the chips from the hole. Screw the intermediate tap into the cut threads by hand; it should engage them on its own. It turns easily at first and only starts cutting deeper in the hole. The finishing tap enters with almost no resistance and cuts the final few percent of the profile only at the end. When it screws in smoothly all the way, the thread is complete; check it with a BSW 2-4 1/2 screw.

2-4 1/2 BSW Whitworth hand tap

A set of professional 2-4 1/2 BSW hand taps for Whitworth inch threads, for cutting Whitworth threads, type BSW 2 – 4 1/2, BS-84:1956, with a 55° thread angle. The tools are used to tap through holes and blind holes, primarily in all types of piping. The tools are sold as a set comprising a starter tap with a 8P chamfer, an intermediate tap with an 4P chamfer (roughing tap), and a final tap with a 2P chamfer (finishing tap). The full thread is cut in three operations using all three taps in sequence. The tools feature high-quality workmanship in accordance with ISO 529. The main advantage of these taps is their construction from special high-grade high-speed steel HSS – SW7M. This tool steel enables tapping of very hard, difficult-to-machine materials such as unalloyed steels, metals, nonferrous metals, and metal alloys.
