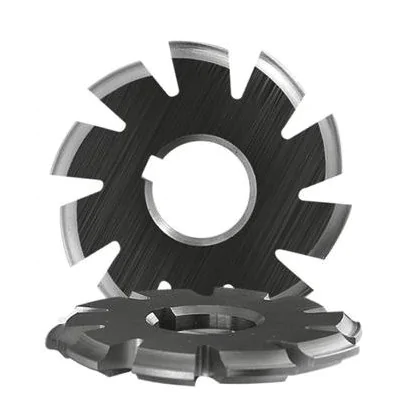

Modular disc cutter M2.5 NR8 HSS

Fenes Narzędzia Fenes Narzędzia
0000003357
Module: 2,512 sizes of this cutter
€35.61 tax inc.

Net price: €28.95

Brak w magazynie
Brak w magazynie

Call and order: (44) 755-04-05

Description

Technical data
Diameter D 22 mm
Diameter d 63 mm
Number of teeth machined 135 I More

Modular circular milling cutter M2,5 NR8 HSS

The M2.5 NR8 HSS modular circ ular milling cutter is an advanced tool designed for precision cutting of the outer serrations of gears with a module of 2.5. The cutter numbered NR8 is dedicated to machining gears with the highest number of teeth in the set, ensuring excellent quality and repeatability of the involute profile.

Made of high-quality HSS high-speed steel, the tool is characterized by high wear resistance and long service life. The staggered blades and 20° buttress angle guarantee smooth operation and a smooth cut surface, which minimizes the risk of surface defects. The cutter complies with NFMa standards, which allows it to be fully compatible with the modular cutter system.

  • Number NR8 - ideal for wheels with the highest number of teeth in the 2.5 module.
  • HSS high-speed steel - ensures long-lasting performance and tool life.
  • Staggered blades - reduces vibration and improves cutting quality.
  • 20° buttress angle - complies with industry standards for involute serrations.
  • NFMa standard - guarantees easy adaptation to modular sets.

The M2.5 NR8 HSS modular disc cutter is a reliable choice for factories that require high precision and quality in gear machining.

Patterns for modular cutters

dp - pitch diameter,

P - nominal pitch (measured from the arc)

Z - number of teeth of the work wheel

m - nominal modulus

P.A.- adhesion angle 20 degrees

dp=z*m

m=P*PI
