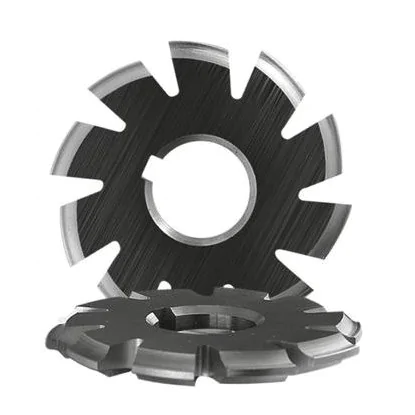

Modular disc cutter M2.5 NR4 HSS

Fenes Narzędzia Fenes Narzędzia
0798
Module: 2,517 sizes of this cutter
€35.61 tax inc.

Net price: €28.95

Brak w magazynie
Brak w magazynie

Call and order: (44) 755-04-05

Description

Technical data
Diameter D 22 mm
Diameter d 63 mm
Number of teeth to be machined 21-25

Modular circular milling cutter M2,5 NR4 HSS

Modular disc cutterM2,5 NR4 HSS is a high-performance tool designed for precision cutting of the outer serrations of gears with a module of 2,5. The cutter marked with the number NR4 is ideal for machining wheels with a medium number of teeth, providing excellent reproduction of the involute profile and high quality of the cut surface.

Made of durable HSS, the tool features high wear resistance and long life, making it suitable for both batch and unit production. The staggered blades and 20° buttress angle minimize vibration and micro-cracking, guaranteeing stable machining and repeatable results.

  • Number NR4 - designed for gears with an average number of teeth in 2.5 module.
  • HSS high-speed steel - guarantees durability and high wear resistance.
  • Precision revolute outline - ensures accuracy of manufacture and compliance with standards.
  • Staggered blades - improve cutting quality and stabilize the tool.
  • NFMa standard - ensures compatibility with modular cutter sets.

The M2.5 NR4 HSS modular disc cutter is an excellent choice for professionals who expect reliability and high quality in gear production.

Patterns for modular cutters

dp - pitch diameter,

P - nominal pitch (measured from the arc)

Z - number of teeth of the work wheel

m - nominal modulus

P.A.- adhesion angle 20 degrees

dp=z*m

m=P*PI
